Wire Electrical Discharge Machine SODICK AQ325L

Net price 20027 USD
Local tax (VAT) 23 %
Company name Maszyneria
Sławomir Konieczko
Address Wita Stwosza 18/13
City Jelenia Góra
Post code 58-560
region Dolnośląskie
Country Poland
Telephone +48 603510566
Category Electrical Discharge Machines SODICK ›
Manufacturer SODICK ›
FREE AD
watch PDF ask print report abuse 2026-05-10

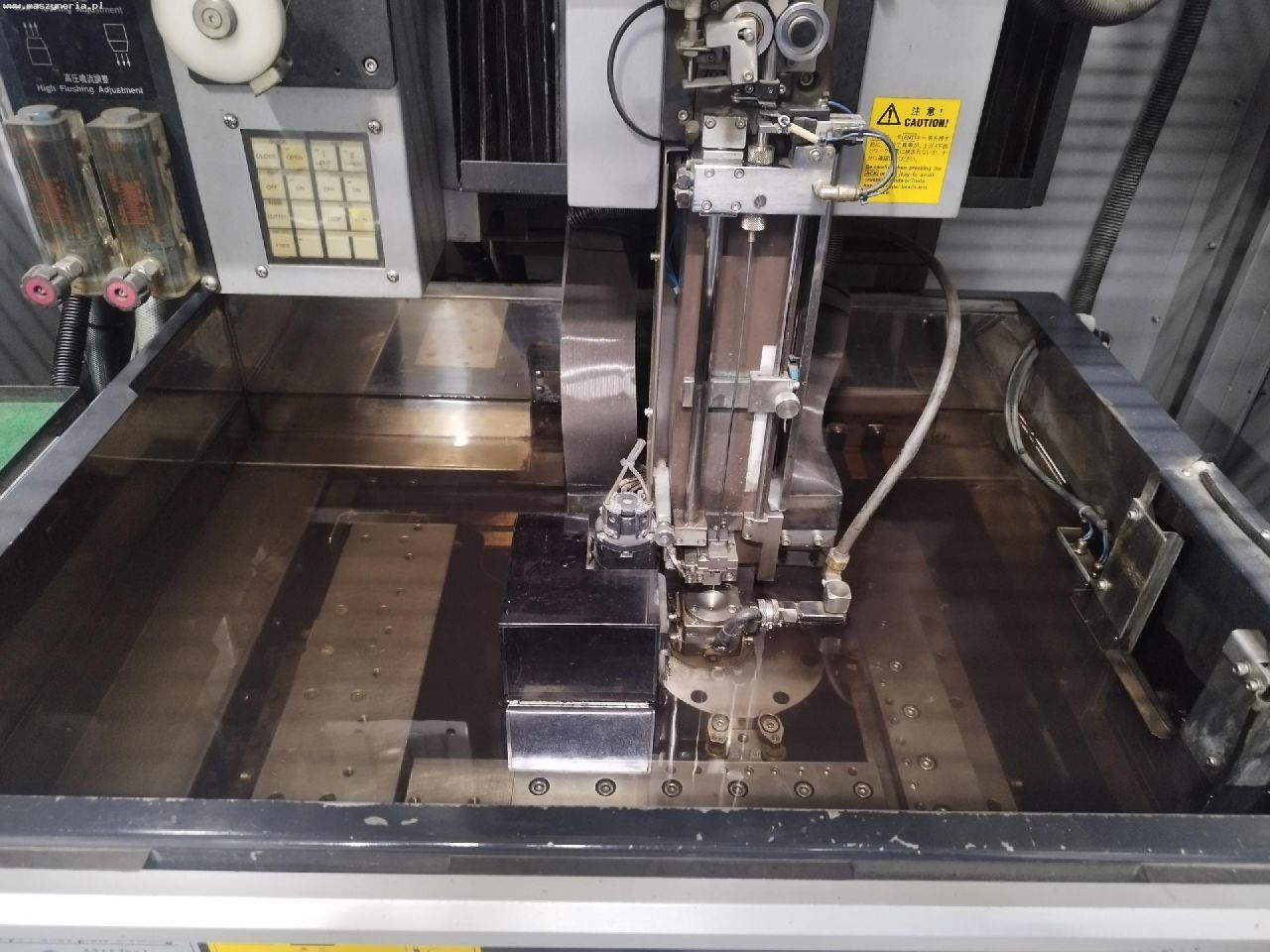

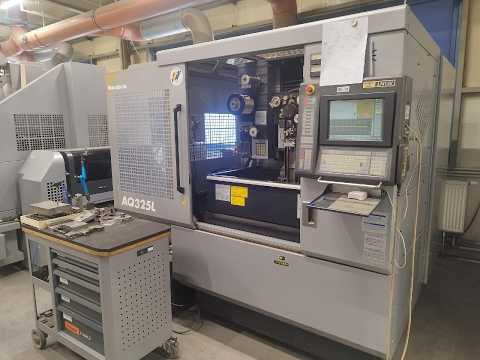

Wire Electrical Discharge Machine SODICK AQ325L was manufactured by the machine manufacturer SODICK. Machine SODICK AQ325L was built in 2002 year.

General data

Location Poland
region Dolnośląskie
Year of manufacture 2002
Warranty Without warranty
Technical condition Very good
Payment Before receipt
Transport The buyer organizes the transport at his own cost

Technical parameters

Number of CNC controlled axles 5 pcs
Length of the table 23.6 in
Width of the table 15.7 in
Maximum travel length X-axis 13.8 in
Maximum travel length Y-axis 9.8 in
Maximum travel length Z-axis 8.7 in
Travel length U-axis (+ -) 3.1 in
Travel length V-axis (+ -) 3.1 in
Maximum tilt of the wire (+ -) 20 st
Maximum workpieces width (Y) 8.7 in
Minimum thickness of the wire 0.00590551 in
Maximum thickness of the wire 0.011811 in
Maximum table load 992.1 lb
Dielectric tank capacity 140 US gallon
Machine height 80.3 in
Machine length 65 in
Machine width 74.8 in
Machine weight 3.1 short ton

Equipment

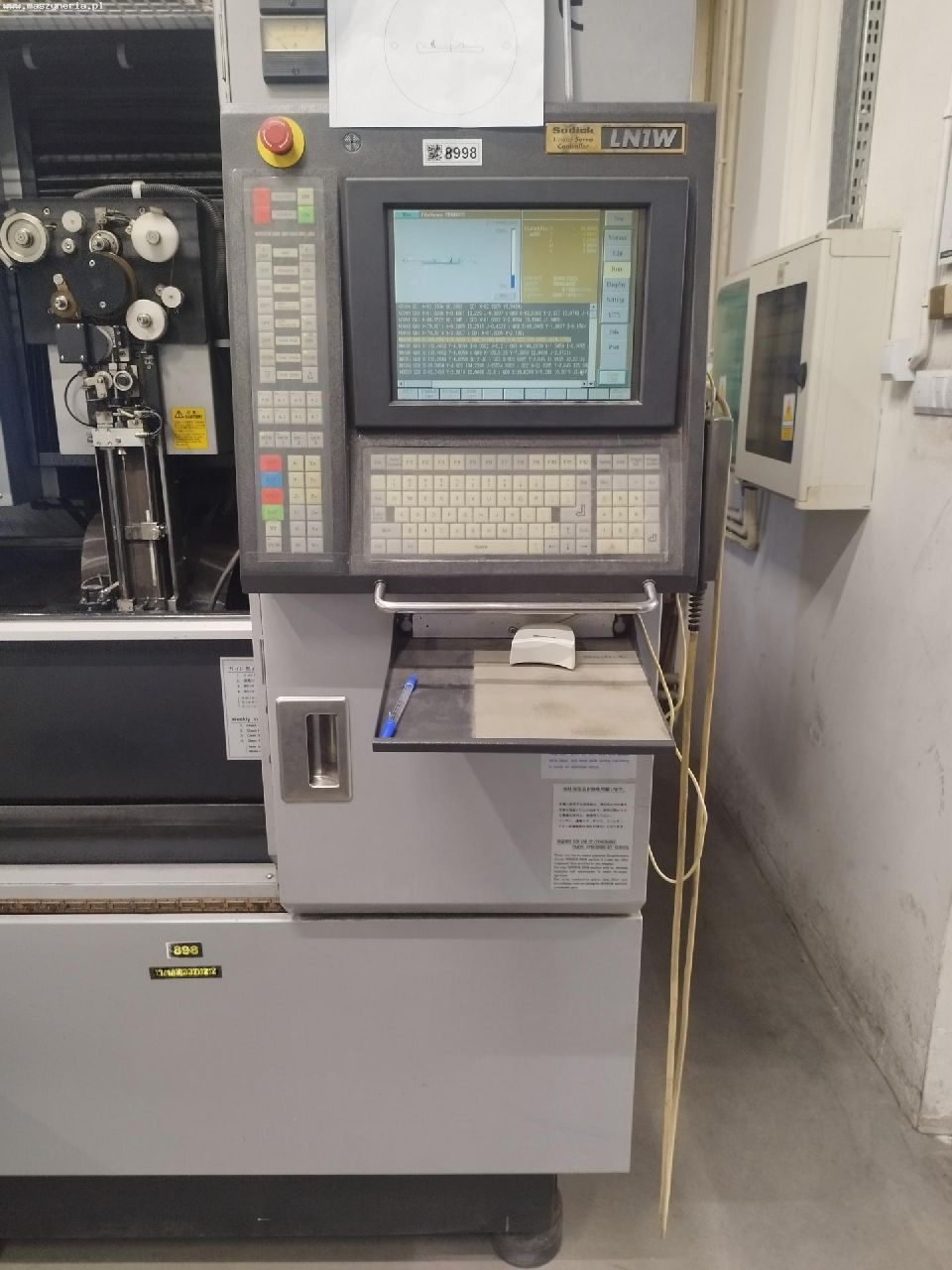

SODICK LN1W
CNC control
