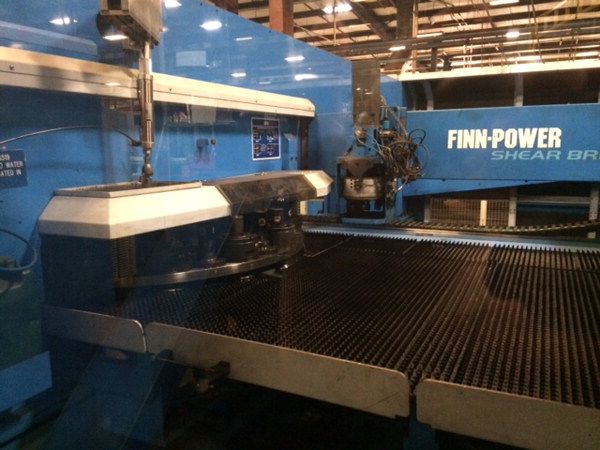

Turret Punch Press FINN POWER SB-6 SHEAR BRILLIANCE

Category Punching Machines for sheet metal FINN POWER ›
Manufacturer FINN POWER ›

ARCHIVED AD
Turret Punch Press FINN POWER SB-6 SHEAR BRILLIANCE was manufactured by the machine manufacturer FINN POWER. Machine FINN POWER SB-6 SHEAR BRILLIANCE was built in 1998 year.

General data

Location United States
region Illinois
Year of manufacture 1998
Warranty Without warranty

Technical parameters

Maximum force (pressing) 33 short ton
Maximum thickness of the sheet metal 0.135 in
Maximum travel length X-axis 61.4 in
Maximum travel length Y-axis 121.7 in
Maximum length of the sheet metal (X) 60 in
Maximum width of the sheet metal (Y) 120 in
Maximum punching speed (number of impacts per minute) 520 1/min
Number of tools in the turret 30 pcs
Maximum feed rate in X-axis 7080 in/min
Maximum feed rate in Y-axis 5520 in/min

Equipment

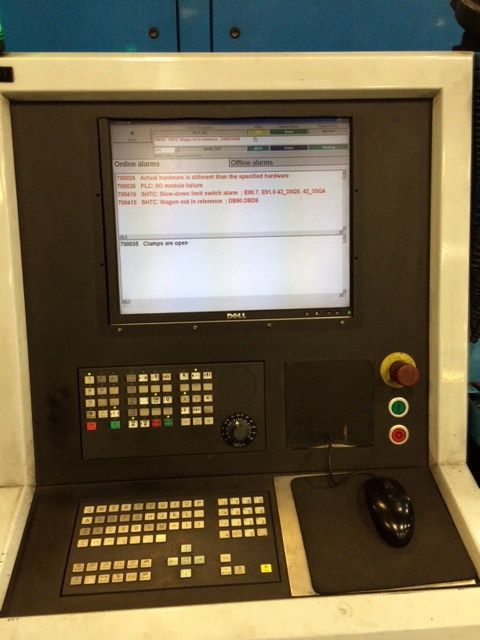

SIEMENS SINUMERIK
Sheet metal loading system
Sheet metal uploading system
