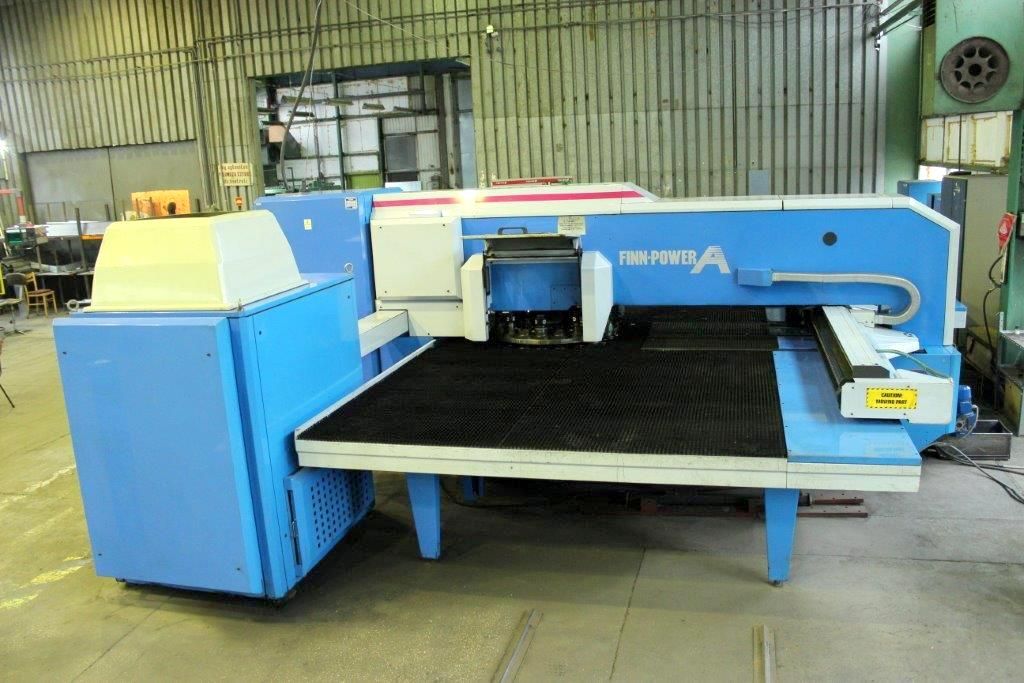

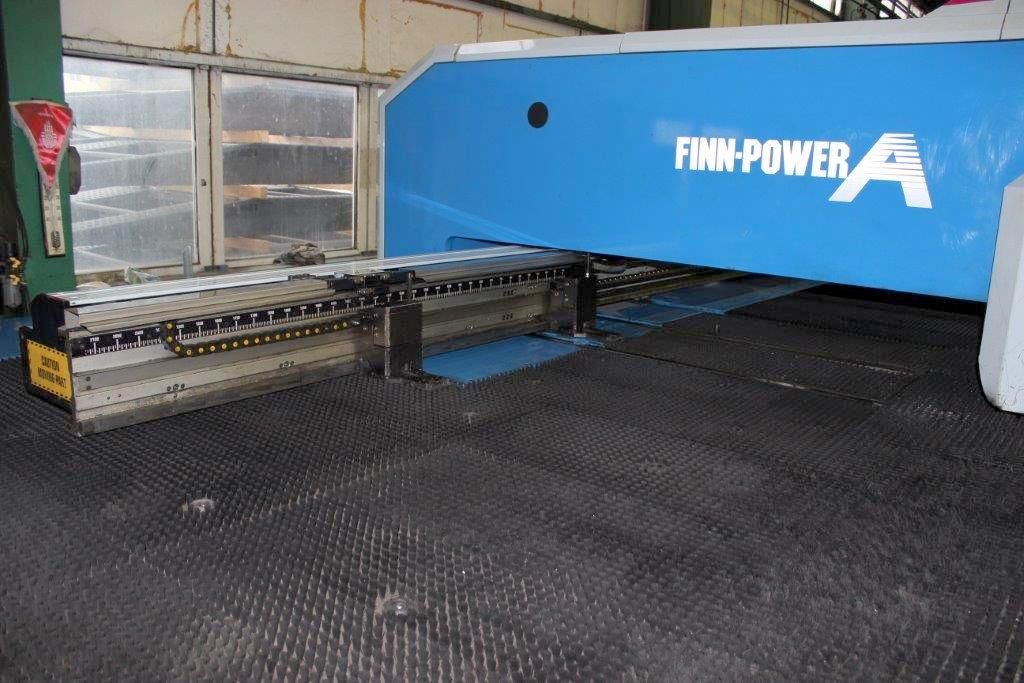

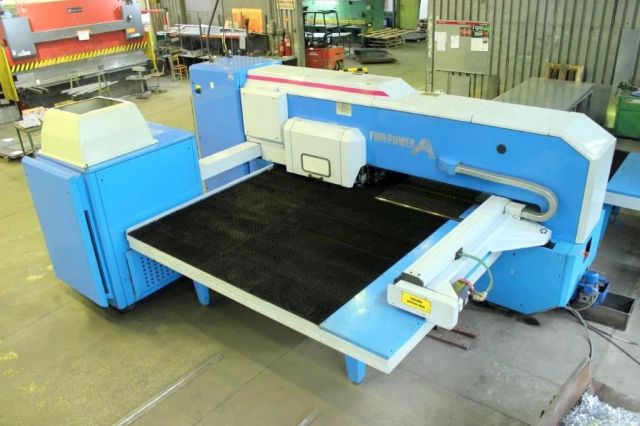

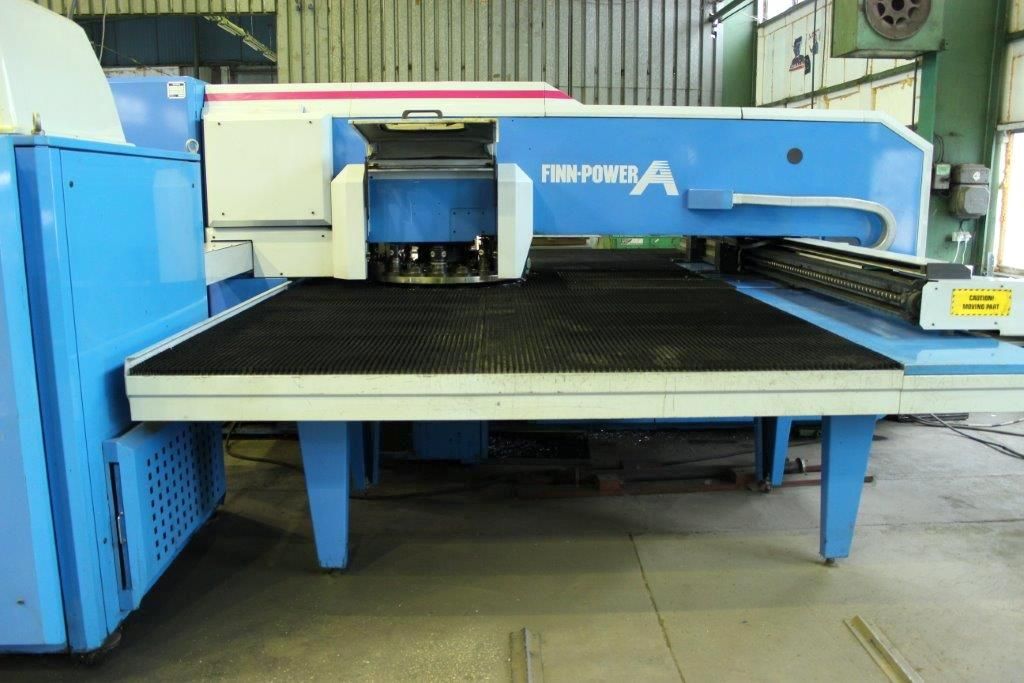

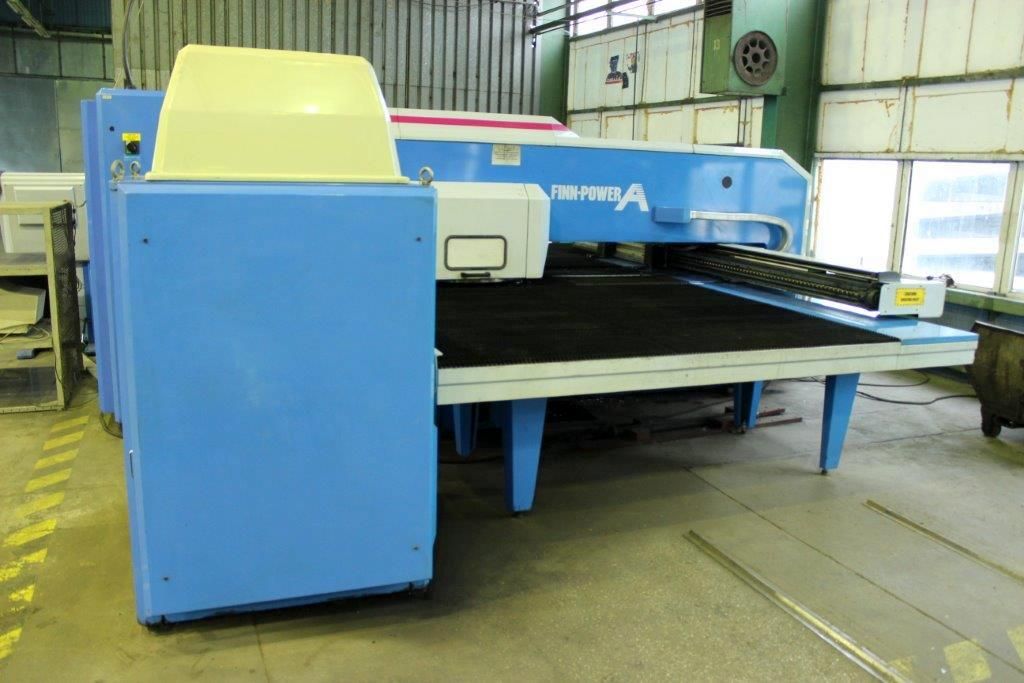

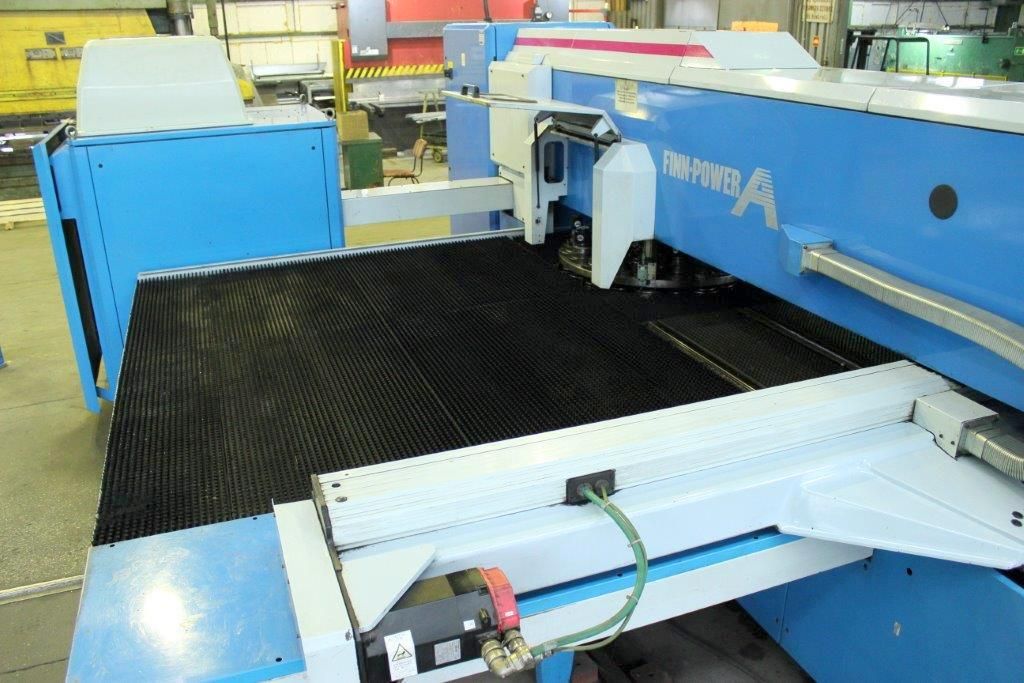

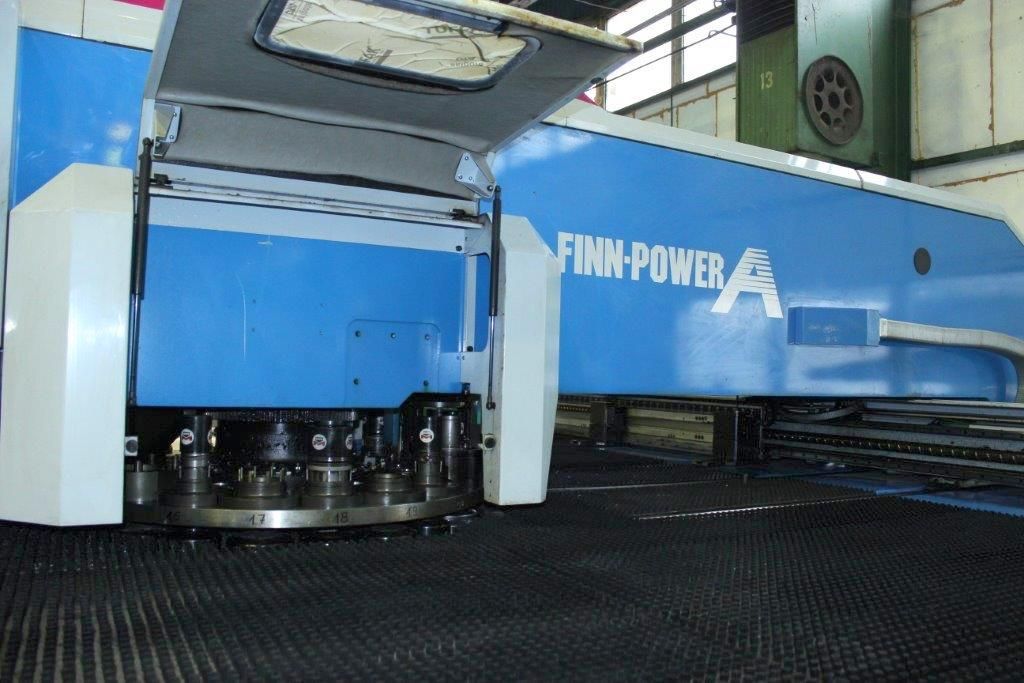

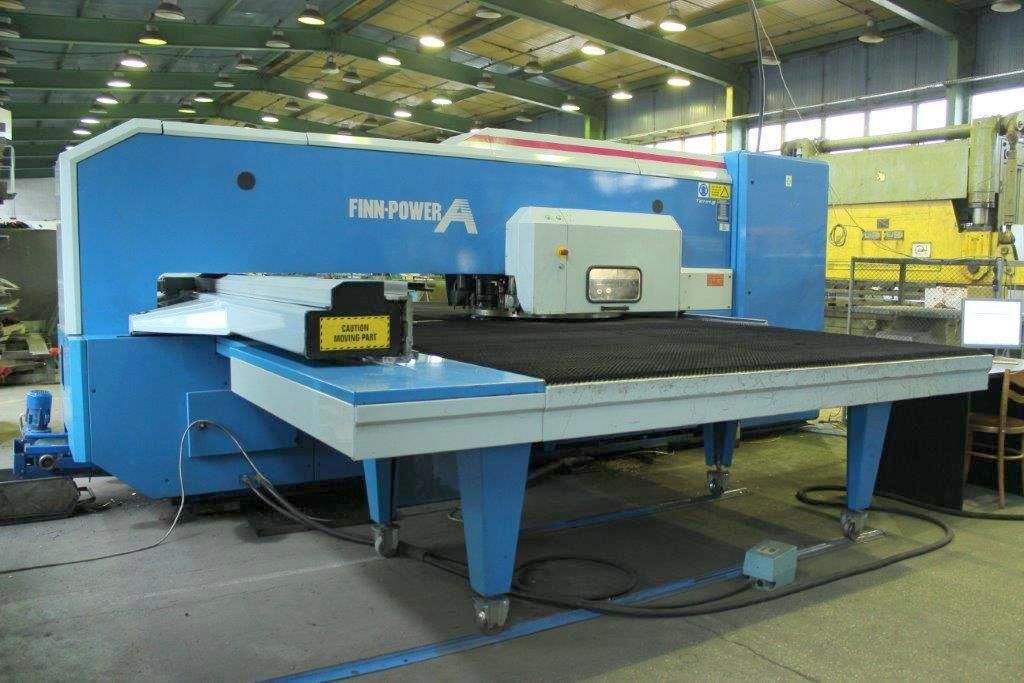

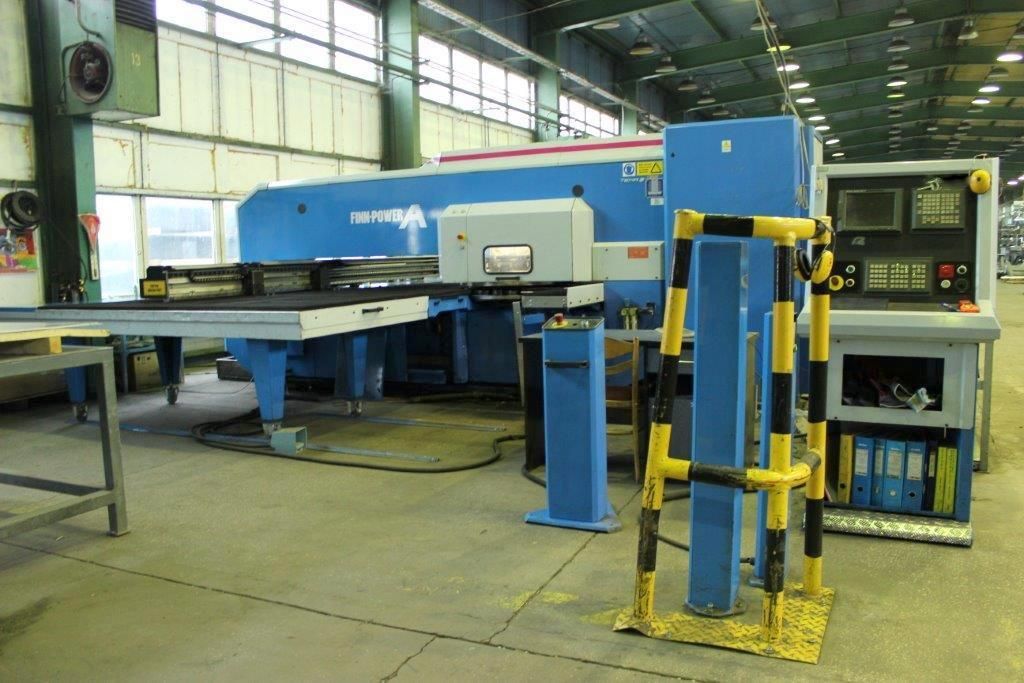

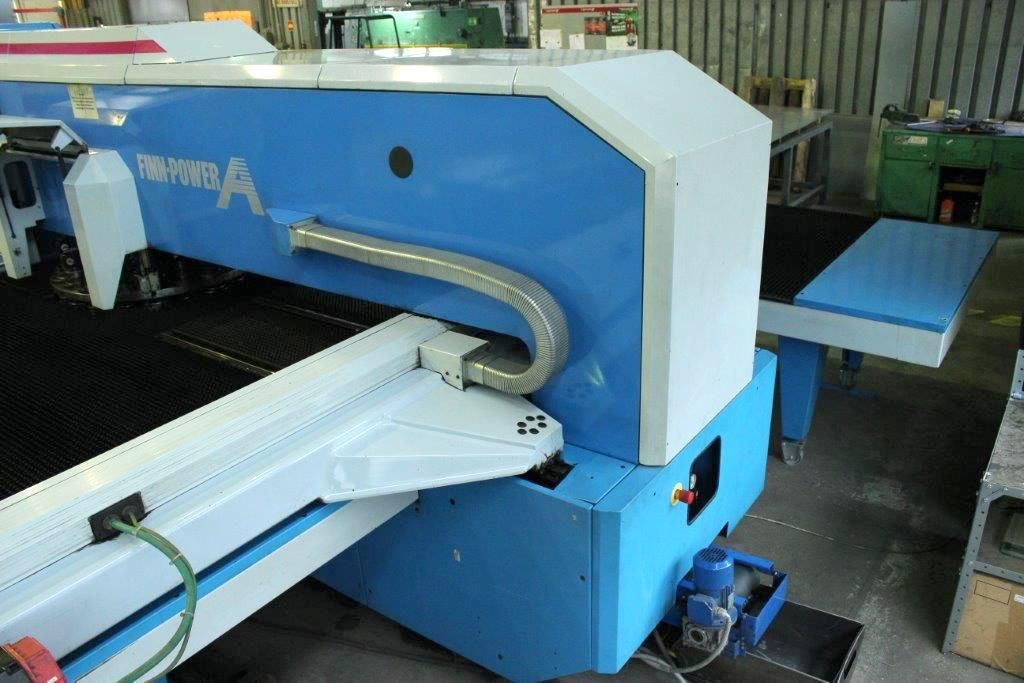

Turret Punch Press FINN-POWER A 5 F

Category Punching Machines for sheet metal FINN-POWER ›
Manufacturer FINN-POWER ›

ARCHIVED AD
Turret Punch Press FINN-POWER A 5 F was manufactured by the machine manufacturer FINN-POWER. Machine FINN-POWER A 5 F was built in 2002 year.

General data

Location Poland
region Dolnośląskie
Year of manufacture 2002
Warranty Without warranty
Technical condition Good
Payment Before receipt
Transport The buyer organizes the transport at his own cost
Status A test can be performed

Technical parameters

Maximum force (pressing) 25.9 short ton

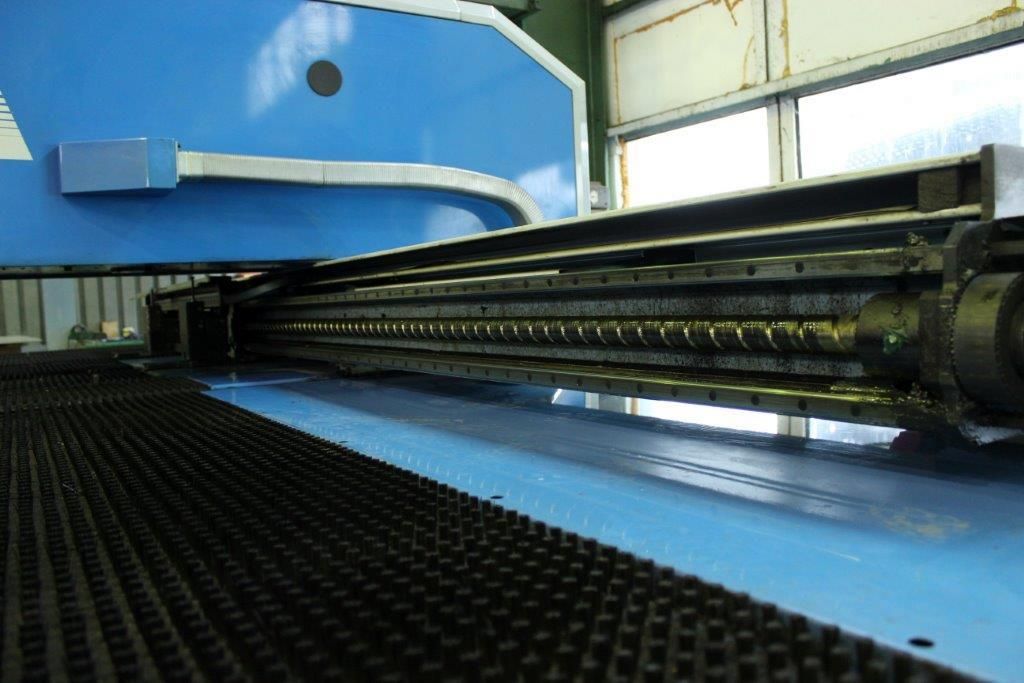

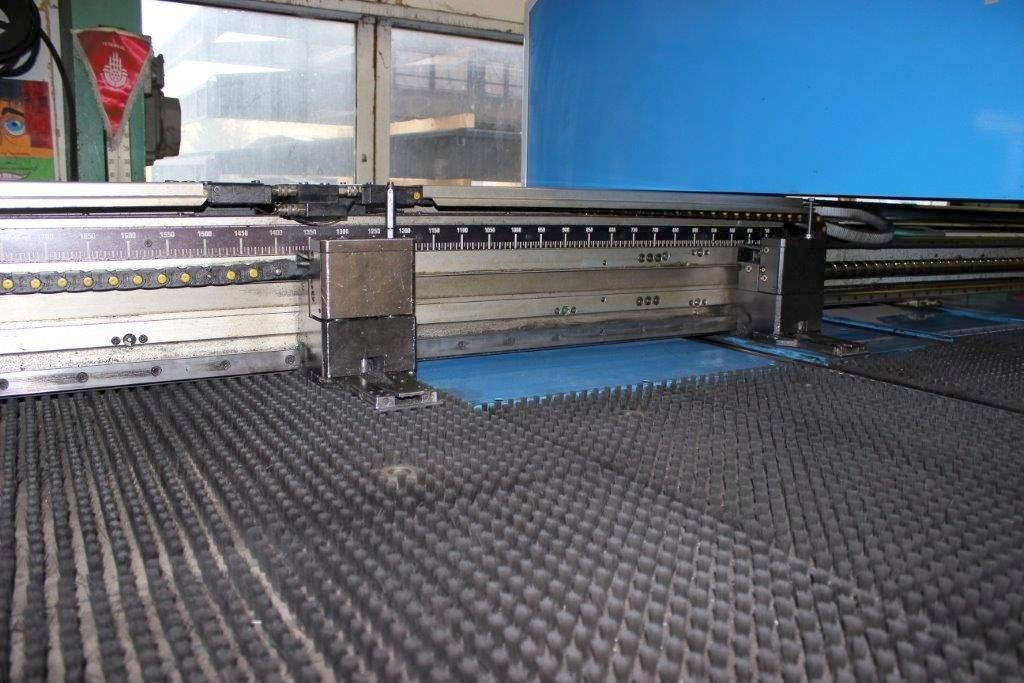

Maximum travel length X-axis 101.7 in
Maximum travel length Y-axis 51.9 in
Maximum length of the sheet metal (X) 99.6 in
Maximum width of the sheet metal (Y) 50 in
Maximum table load (evenly distributed) 440.9 lb

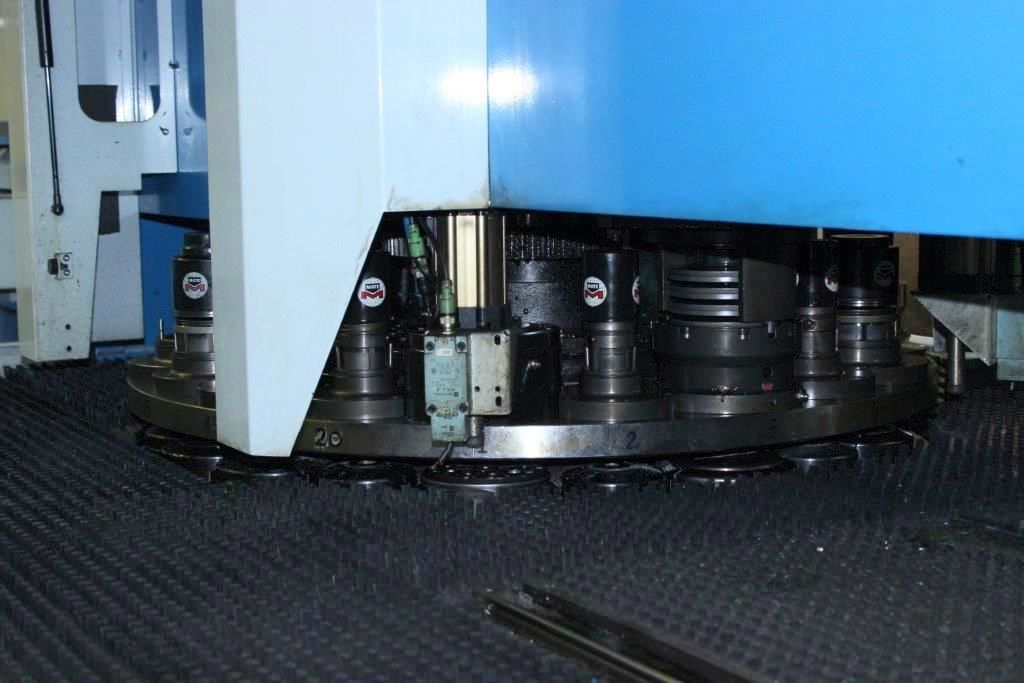

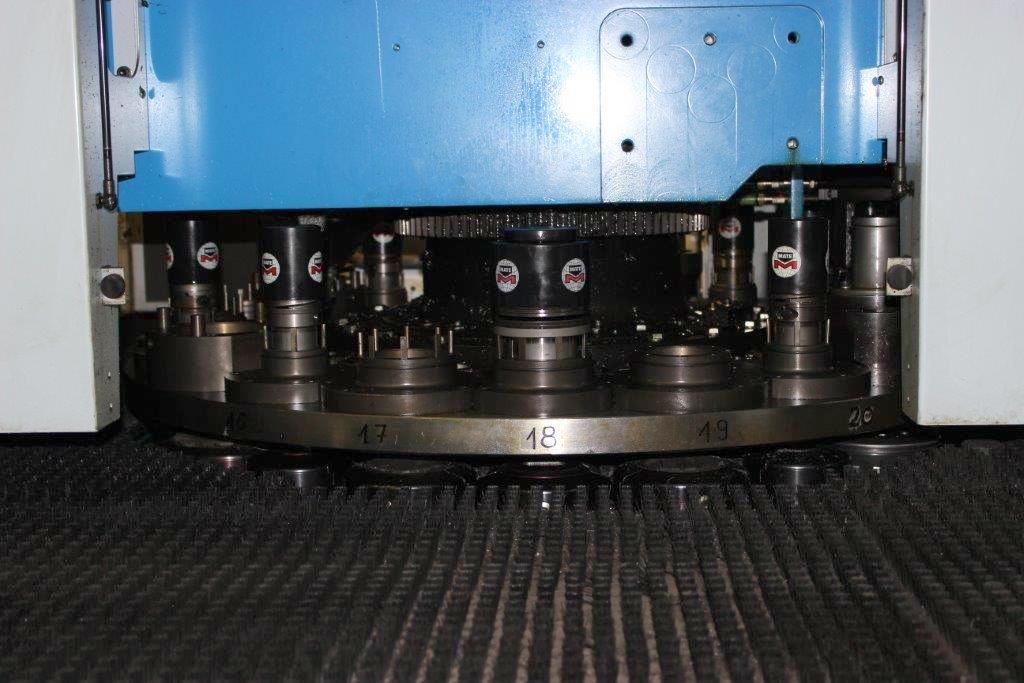

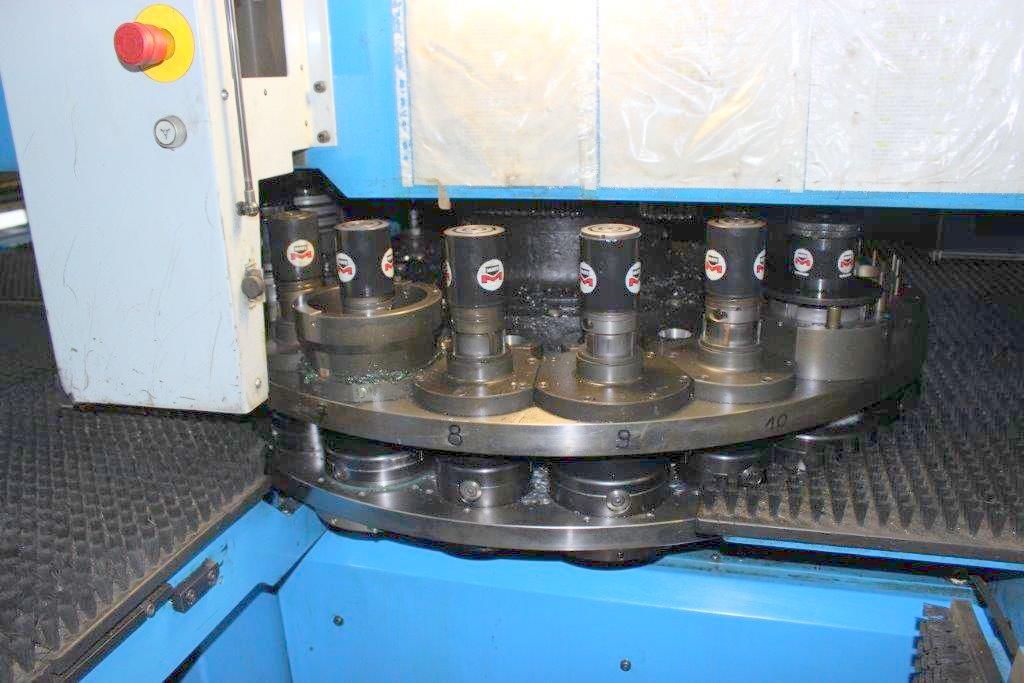

Number of indexed stations in the turret 20 pcs
Maximum feed rate in X-axis 3149.6 in/min
Maximum feed rate in Y-axis 2362.2 in/min
Maximum feed rate with simultaneous operation of the X and Y axis drives 3937 in/min
Total power demand 26.8 hp
Oil tank capacity 87.2 US gallon
Compressed air pressure 87 psi
Machine height 98.4 in
Machine length 212.6 in
Machine width 220.5 in
Machine weight 14.9 short ton

Equipment

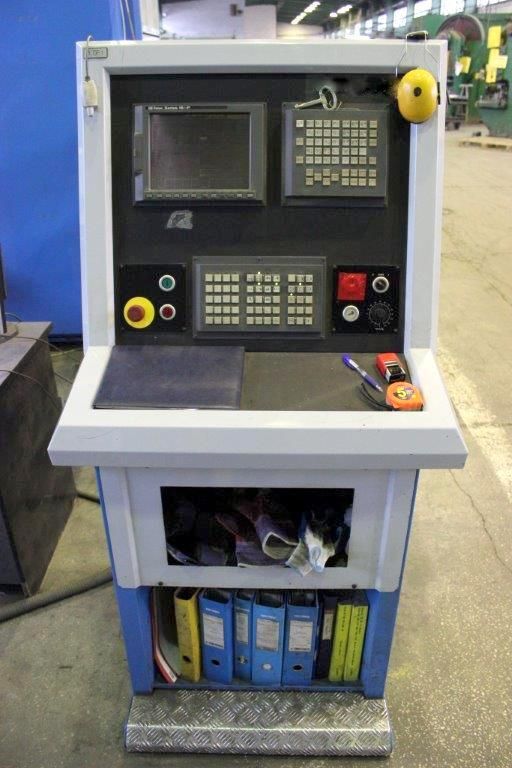

FANUC 16iPA
CNC control
Technical documentation
