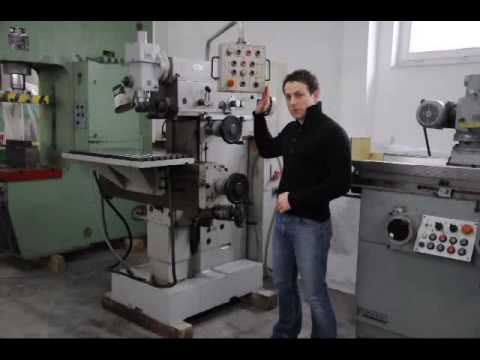

Toolroom Milling Machine Avia FND 32 AT
Toolroom Milling Machine Avia FND 32 AT was manufactured by the machine manufacturer Avia. Machine Avia FND 32 AT was built in 1987 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 1987 |
| Warranty | Without warranty |
| Technical condition | Good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Length of the working table | 31.5 in |
| Width of the working table | 15.7 in |
| Maximum table load (evenly distributed) | 661.4 lb |
| Number of rotary speeds of the vertical spindle | 18 pcs |
| Minimum rotary speed of the vertical spindle | 35.5 1/min |
| Maximum rotary speed of the vertical spindle | 1800 1/min |
| Travel length X-axis (mechanical feed) | 15 in |
| Total power demand | 6.3 hp |
| Travel length X-axis (hand feed) | 15.7 in |
| Number of T-slots in the table | 3 pcs |
| Machine height | 76.8 in |
| Machine length | 83.9 in |
| Machine width | 73.6 in |
| Machine weight | 1.9 short ton |

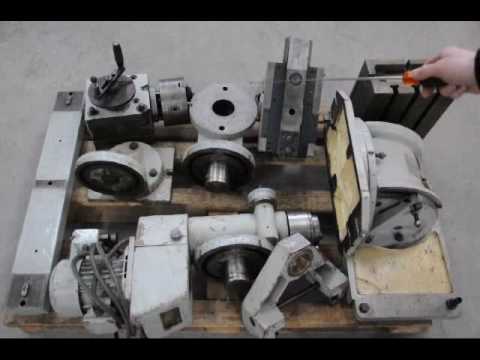

Equipment | |
|---|---|
| Universal swivel head (horizontal-vertical) | |
| Slotting head | |
| Angular machine vice | |
| Rotary table with mechanical drive | |
| Dividing head | |
| Tailstock | |
| Overarm for dividing head and tailstock | |
| Arbor support | |
| Central lubrication | |
| Lighting | |
| Technical documentation | |
