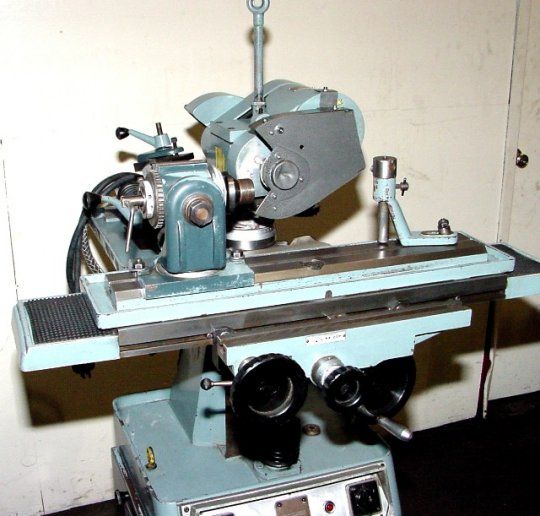

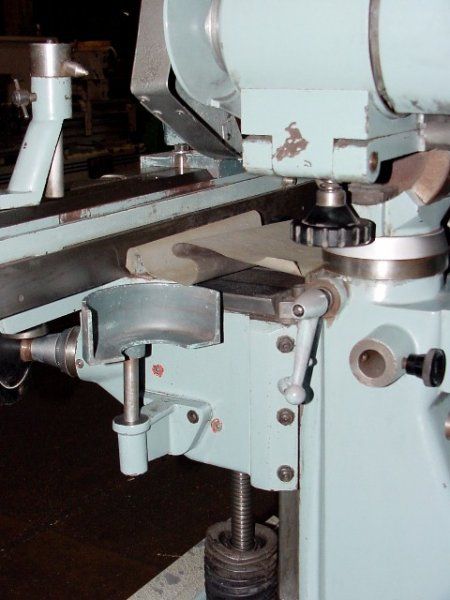

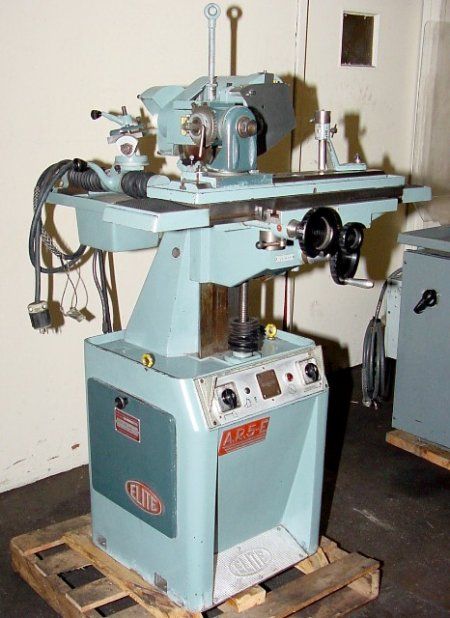

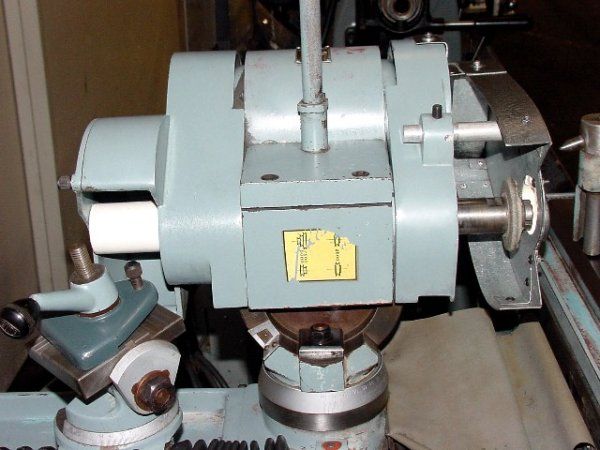

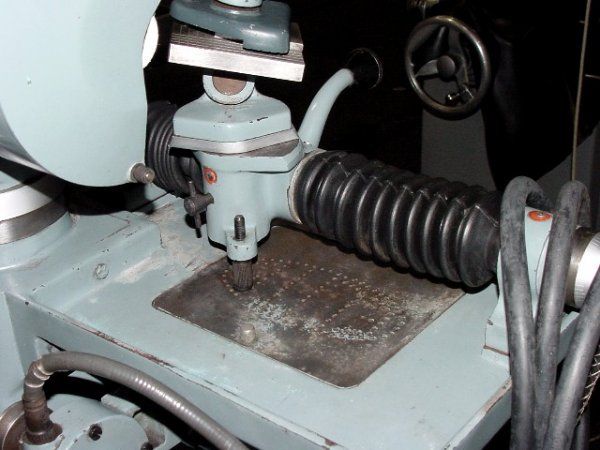

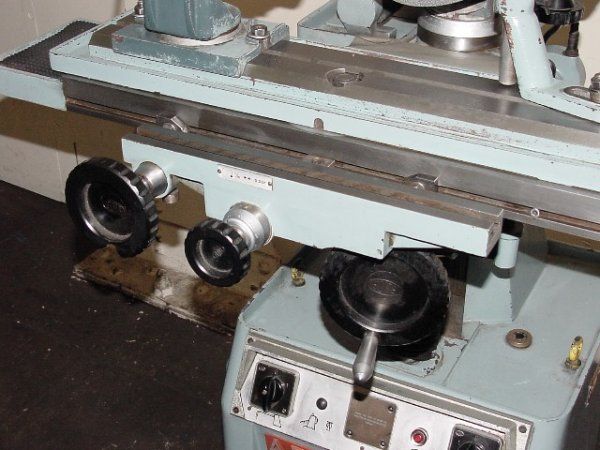

Tool Grinder ELITE A.R.5-E
Tool Grinder ELITE A.R.5-E was manufactured by the machine manufacturer ELITE. Machine ELITE A.R.5-E was built in 1975 year.
General data | |
|---|---|
| Location | United States |
| region | New York |
| Year of manufacture | 1975 |
| Warranty | Without warranty |
| Stock number | 56459 |
Technical parameters | |
|---|---|
| Length of the working table | 24 in |
| Width of the working table | 3 in |
| Power of the spindle drive | 0.75 hp |
| Maximum rotary speed of the spindle | 7500 1/min |
| Travel length X-axis (hand feed) | 11.8 in |
| Travel length Y-axis (hand feed) | 5.3 in |
| Travel length Z-axis (hand feed) | 8.3 in |
| Diameter of a new grinding wheel | 6 in |
| Machine height | 58 in |
| Machine length | 36 in |
| Machine width | 44 in |
| Machine weight | 0.75 short ton |
Equipment | |
|---|---|
| no data | |
