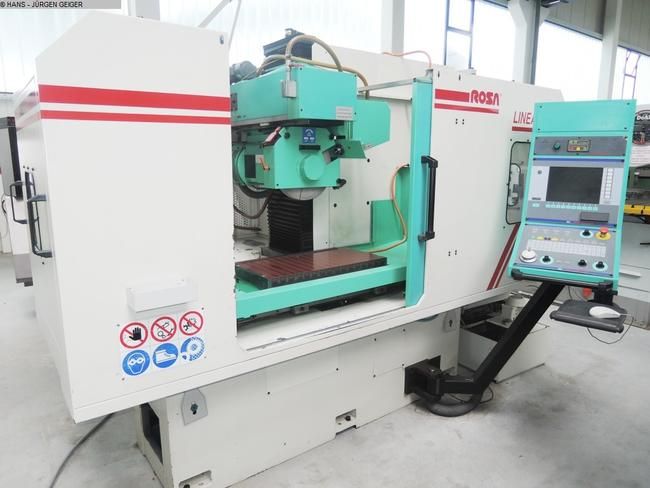

Surface Grinding Machine ROSA IRON 08.6 CNC

Category Grinding Machines ROSA ›
Manufacturer ROSA ›

ARCHIVED AD
Surface Grinding Machine ROSA IRON 08.6 CNC was manufactured by the machine manufacturer ROSA. Machine ROSA IRON 08.6 CNC was built in 2001 year.

General data

Location Germany
region Baden-Württemberg
Year of manufacture 2001
Warranty Without warranty

Technical parameters

Length of the working table 31.5 in
Width of the working table 15.7 in
Maximum height of the grinded workpieces (for a new grinding wheel) 18.9 in
Maximum table load (evenly distributed) 2204.6 lb
Power of the spindle drive 10.1 hp
Maximum rotary speed of the spindle 1450 1/min
Diameter of a new grinding wheel 15.7 in
Maximum diameter of a grinding wheel 2.4 in
Diameter hole in the grinding wheel 5 in
Total power demand 14.7 hp
Maximum length of grinding (without the grinding wheel output) X-axis 33.5 in
Maximum width of grinding (without the grinding wheel output) Y-axis 24 in
Machine weight 6 short ton

Equipment

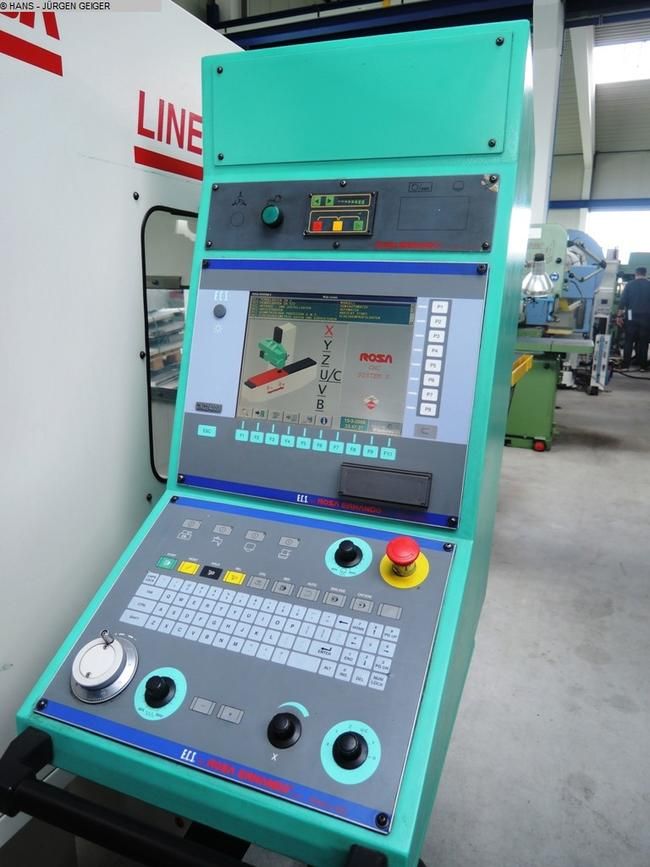

ECS CNC 2400 D

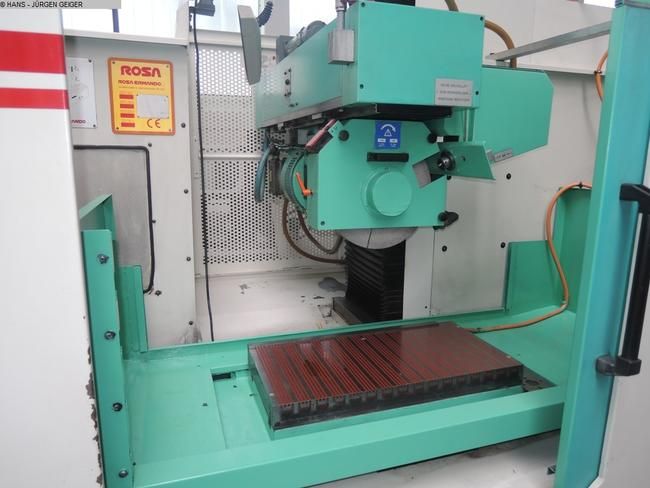

Permanent magnetic chuck
Liquid cooling system
