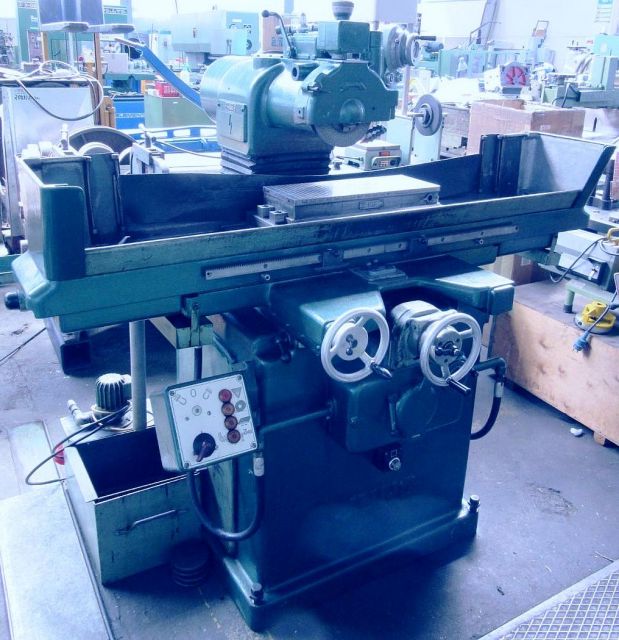

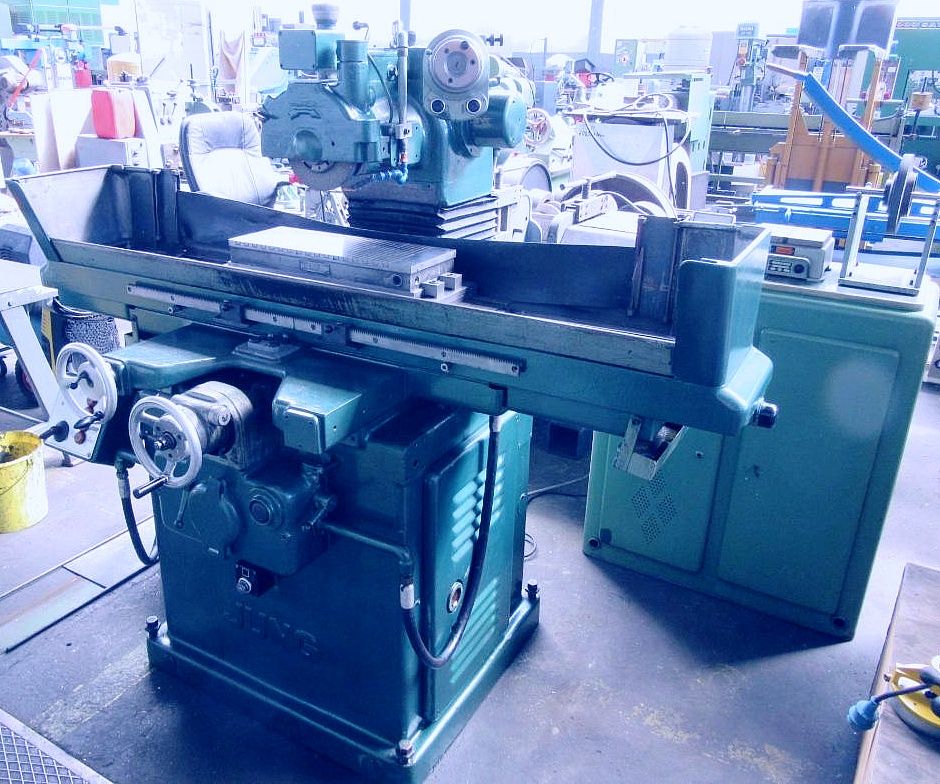

Surface Grinding Machine JUNG F 50 R
Surface Grinding Machine JUNG F 50 R was manufactured by the machine manufacturer JUNG. Machine JUNG F 50 R was built in 1965 year.
General data | |
|---|---|
| Location | Germany |
| Year of manufacture | 1965 |
| Warranty | Without warranty |
| Technical condition | Good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Power of the spindle drive | 2 hp |
| Number of rotary speeds of the spindle | 1 pcs |
| Minimum rotary speed of the spindle | 1000 1/min |
| Maximum rotary speed of the spindle | 4000 1/min |
| Total power demand | 2.7 hp |
| Maximum length of grinding (without the grinding wheel output) X-axis | 19.7 in |
| Maximum width of grinding (without the grinding wheel output) Y-axis | 7.9 in |
| Machine weight | 1.7 short ton |
Equipment | |
|---|---|
| Smooth adjustment of the spindle speed | |
| Rapid feed of the grinding wheel | |
| Permanent magnetic chuck | |
| Demagnetizing of the chuck | |
| Balancing machine for static balancing of the grinding wheel | |
| Balancing machine for dynamic balancing of the grinding wheel | |
| Device for rectilinear truing of the grinding wheel | |
| Dust extractor | |
| Liquid cooling system | |
| Coolant filter system (paper) | |
| Central lubrication | |
| Technical documentation | |
| CE Declaration | |
