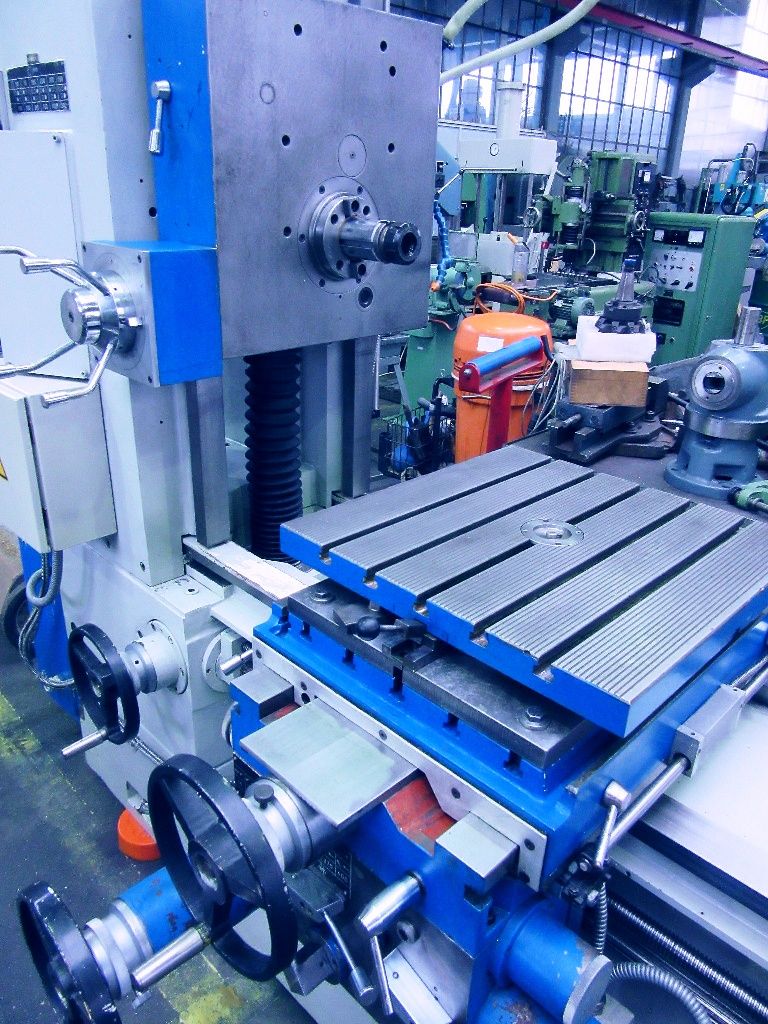

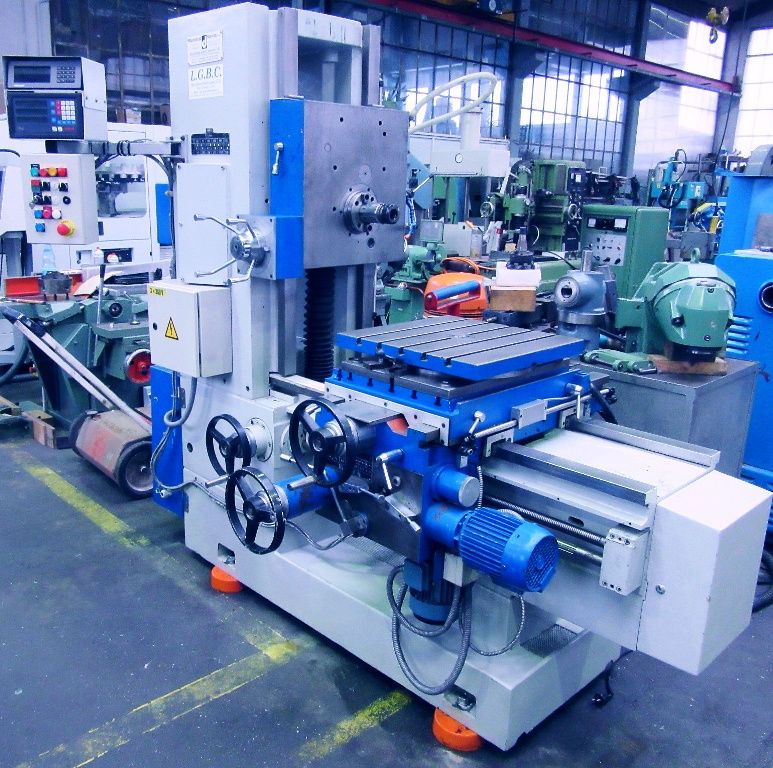

Horizontal Boring Machine DUCHATEAU L.G.B.C. 63

Category Boring Machines DUCHATEAU ›
Manufacturer DUCHATEAU ›

ARCHIVED AD
Horizontal Boring Machine DUCHATEAU L.G.B.C. 63 was manufactured by the machine manufacturer DUCHATEAU. Machine DUCHATEAU L.G.B.C. 63 was built in 1981 year.

General data

Location Germany
Year of manufacture 1981
Warranty Without warranty
Technical condition Very good
Loading The seller organizes the loading - included in the price of the machine
Payment Before receipt
Transport The buyer organizes the transport at his own cost
Status A test can be performed

Technical parameters

Spindle bore 2.5 in
Length of the working table 19.7 in
Width of the working table 19.7 in
Power of the spindle drive 5 hp
Minimum rotary speed of the spindle 50 1/min
Maximum rotary speed of the spindle 1500 1/min
Travel length X-axis (mechanical feed) 27.6 in
Travel length Y-axis (mechanical feed) 17.7 in
Travel length Z-axis (mechanical feed) 24.4 in
Total power demand 7.4 hp
Travel length X-axis (hand feed) 27.6 in
Travel length Y-axis (hand feed) 17.7 in
Travel length Z-axis (hand feed) 24.4 in
Machine weight 2.2 short ton

Equipment

Digital readouts
Vibroisolators
Central lubrication
