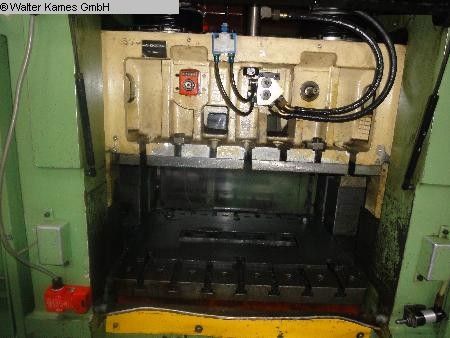

Eccentric Press RASTER HR 60/700 NL-4S

Category Mechanical Presses RASTER ›
Manufacturer RASTER ›

ARCHIVED AD
Eccentric Press RASTER HR 60/700 NL-4S was manufactured by the machine manufacturer RASTER. Machine RASTER HR 60/700 NL-4S was built in 1992 year.

General data

Location Germany
region Nordrhein-Westfalen
Year of manufacture 1992
Warranty Without warranty

Technical parameters

Maximum force (pressing) 60 t
Length of the bottom working table 27.6 in
Width of the bottom working table 20.9 in
Maximum number of strokes per minute (manual work) 400 1/min
Minimum length of the slider stroke 0.787402 in
Maximum length of the slider stroke 3.1 in
Maximum distance between the table and the slider (at the lower position of the slider) 13.8 in
Power demand 20.1 hp
Machine weight 9 t

Equipment

no data
