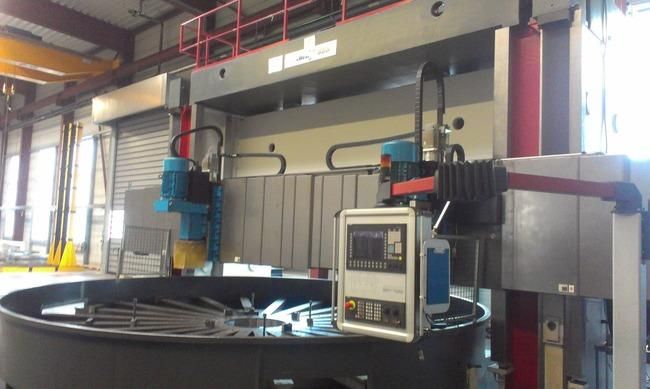

CNC Vertical Turret Lathe Stanko KU 193 M

Category CNC Lathes and Turning Centers Stanko ›
Manufacturer Stanko ›

ARCHIVED AD
CNC Vertical Turret Lathe Stanko KU 193 M was manufactured by the machine manufacturer Stanko. Machine Stanko KU 193 M was built in 2010 year.

General data

Location Germany
region Nordrhein-Westfalen
Year of manufacture 2010
Warranty Without warranty

Technical parameters

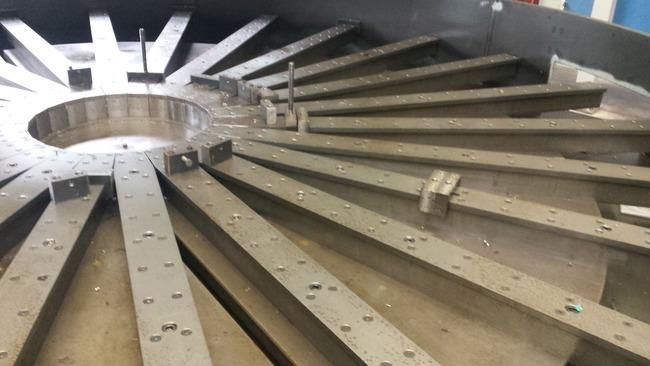

Diameter of the table 157.5 in
Maximum turning diameter 196.9 in
Maximum height of the workpiece 78.7 in
Maximum table rotary speed 950 rpm
Maximum table load 33069.3 lb
Total power demand 100.5 hp
Length of the lathe 259.8 in
Width of the lathe 393.7 in
Height of the lathe 295.3 in
Weight of the lathe 132.3 short ton

Equipment

SIEMENS SINUMERIK 840 D
C-axis synchronous
Liquid cooling system
