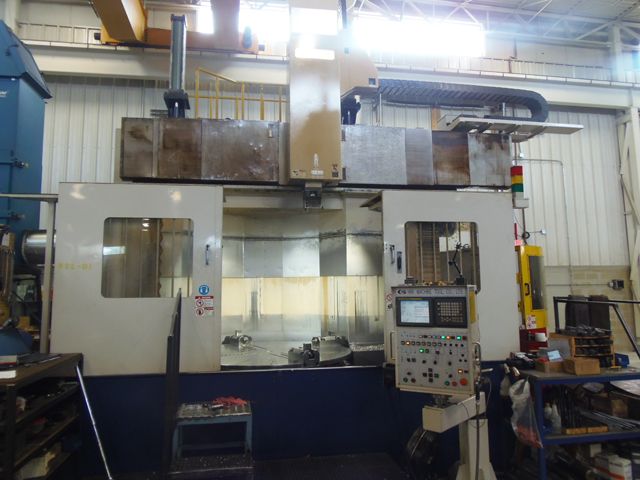

CNC Vertical Turret Lathe HNK HKNT-16/20

Category CNC Lathes and Turning Centers HNK ›
Manufacturer HNK ›

ARCHIVED AD
CNC Vertical Turret Lathe HNK HKNT-16/20 was manufactured by the machine manufacturer HNK. Machine HNK HKNT-16/20 was built in 2006 year.

General data

Location United States
region Wisconsin
Year of manufacture 2006
Warranty Without warranty

Technical parameters

Diameter of the table 75 in
Maximum turning diameter 78.7 in
Maximum height of the workpiece 63 in
Minimum table rotary speed 1 rpm
Maximum table rotary speed 250 rpm
Maximum table load 17600 lb
Maximum length of the vertical travel of the transverse beam 29.5 in
Maximum travel length of the carriage over the transverse beam 82.7 in
Total number of tools in the turret 12 pcs
Length of the lathe 273 in
Width of the lathe 216 in
Weight of the lathe 28.5 short ton

Equipment

FANUC 18i-TB

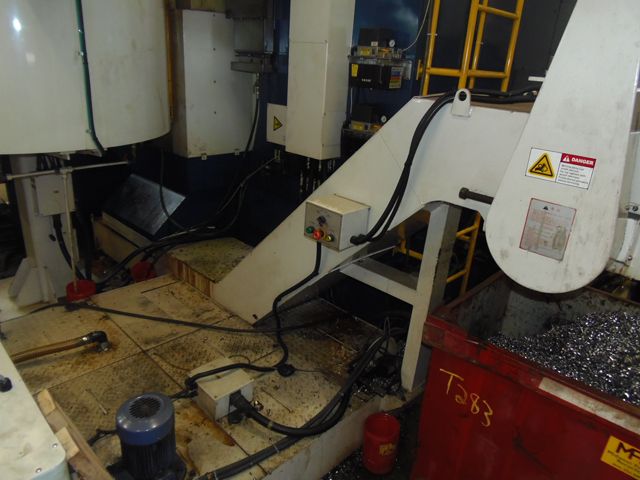

Chip transporter
Technical documentation
