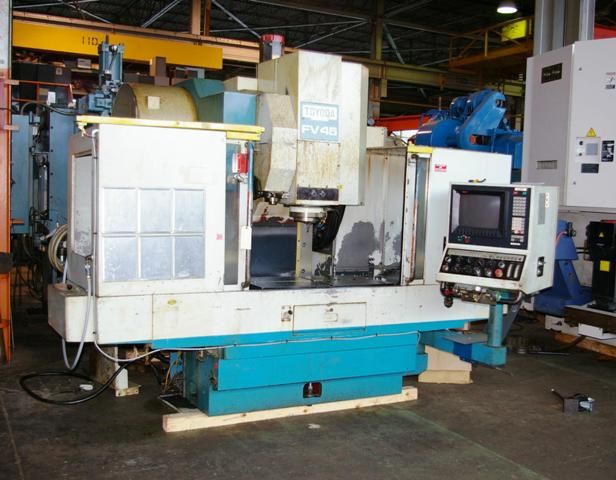

CNC Vertical Machining Center TOYODA FV 45

Category CNC Milling Machines and Machining Centers TOYODA ›
Manufacturer TOYODA ›

ARCHIVED AD
CNC Vertical Machining Center TOYODA FV 45 was manufactured by the machine manufacturer TOYODA. Machine TOYODA FV 45 was built in 1988 year.

General data

Location United States
region Illinois
Year of manufacture 1988
Warranty Without warranty

Technical parameters

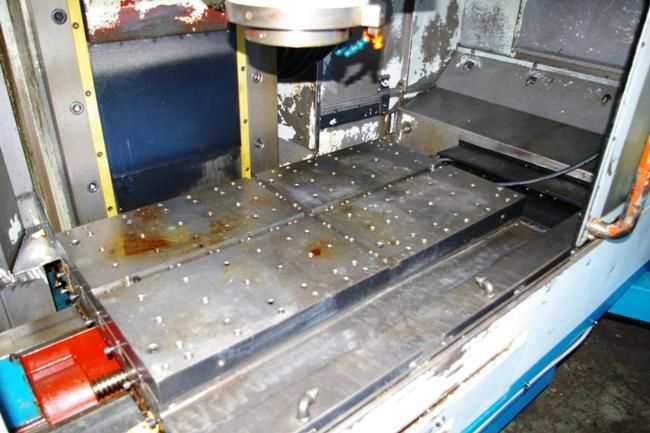

Length of the working table 40.2 in
Width of the working table 20.1 in
Power of the spindle drive 10 hp
Number of tools in the magazine 32 pcs
Minimum rotary speed of the vertical spindle 25 1/min
Maximum rotary speed of the vertical spindle 6000 1/min
Travel length X-axis (mechanical feed) 31.8 in
Travel length Y-axis (mechanical feed) 18.1 in
Travel length Z-axis (mechanical feed) 20 in
Machine height 108 in
Machine length 128 in
Machine width 151 in
Machine weight 7.7 short ton

Equipment

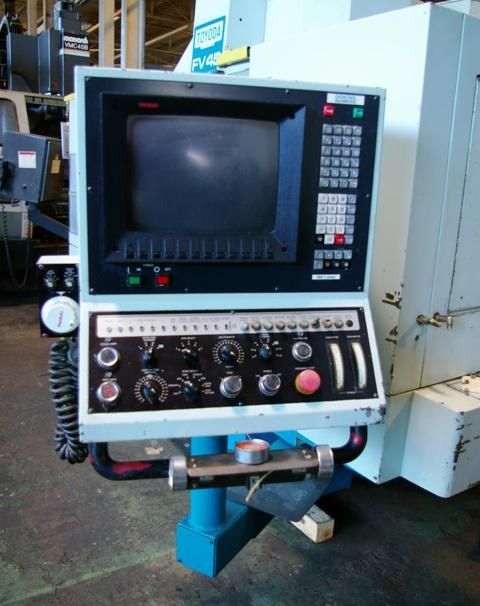

FANUC 11-M
RS connection
Liquid cooling system
Lighting
