CNC Vertical Machining Center RIMA MILL RM 600

Category CNC Milling Machines and Machining Centers RIMA MILL ›
Manufacturer RIMA MILL ›

ARCHIVED AD

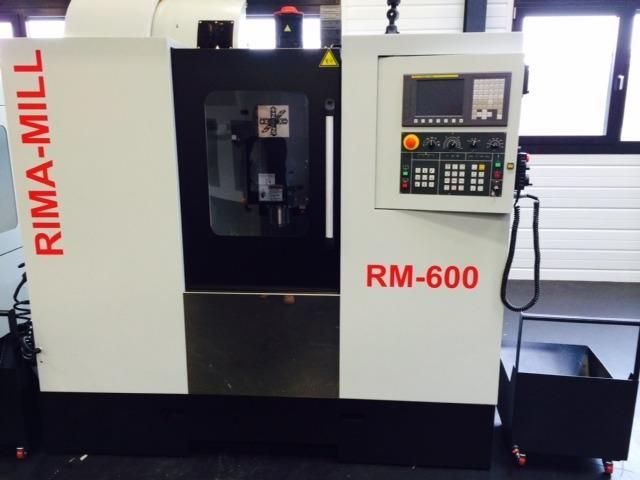

CNC Vertical Machining Center RIMA MILL RM 600 was manufactured by the machine manufacturer RIMA MILL. Machine RIMA MILL RM 600 was built in 2013 year.

General data

Location Germany
region Baden-Württemberg
Year of manufacture 2013
Warranty Without warranty

Technical parameters

Length of the working table 29.9 in
Width of the working table 14.2 in
Maximum table load (evenly distributed) 771.6 lb
Power of the spindle drive 10.1 hp
Number of tools in the magazine 20 pcs
Maximum rotary speed of the vertical spindle 10000 1/min
Minimum distance of the spindle from the table 4.3 in
Maximum distance of the spindle from the table 24.4 in
Travel length X-axis (mechanical feed) 24 in
Travel length Y-axis (mechanical feed) 17.9 in
Travel length Z-axis (mechanical feed) 20.1 in

Equipment

FANUC CNC CONTROL
Liquid cooling system
