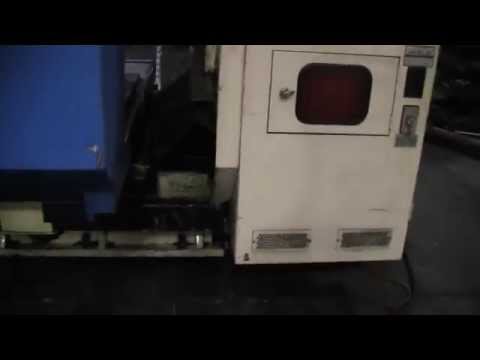

CNC Vertical Machining Center DAH LIH MCV-1020

Category CNC Milling Machines and Machining Centers DAH LIH ›
Manufacturer DAH LIH ›

ARCHIVED AD
CNC Vertical Machining Center DAH LIH MCV-1020 was manufactured by the machine manufacturer DAH LIH. Machine DAH LIH MCV-1020 was built in 1989 year.

General data

Location United States
region Wisconsin
Year of manufacture 1989
Warranty Without warranty

Technical parameters

Length of the working table 50 in
Width of the working table 20 in
Maximum table load (evenly distributed) 2200 lb
Power of the spindle drive 10 hp
Number of tools in the magazine 25 pcs
Minimum rotary speed of the vertical spindle 40 1/min
Maximum rotary speed of the vertical spindle 4000 1/min
Minimum distance of the spindle from the table 5.9 in
Maximum distance of the spindle from the table 28 in
Throat depth (distance of the spindle axis from the frame) 21.7 in
Travel length X-axis (mechanical feed) 40 in
Travel length Y-axis (mechanical feed) 20 in
Travel length Z-axis (mechanical feed) 22 in
Maximum feed rate in X-axis 472 in/s
Maximum feed rate in Y-axis 472 in/s
Maximum feed rate in Z-axis 472 in/s
Machine length 130 in
Machine width 117 in
Machine weight 8.8 short ton

Equipment

FANUC O-M
