Technical parameters |
|---|

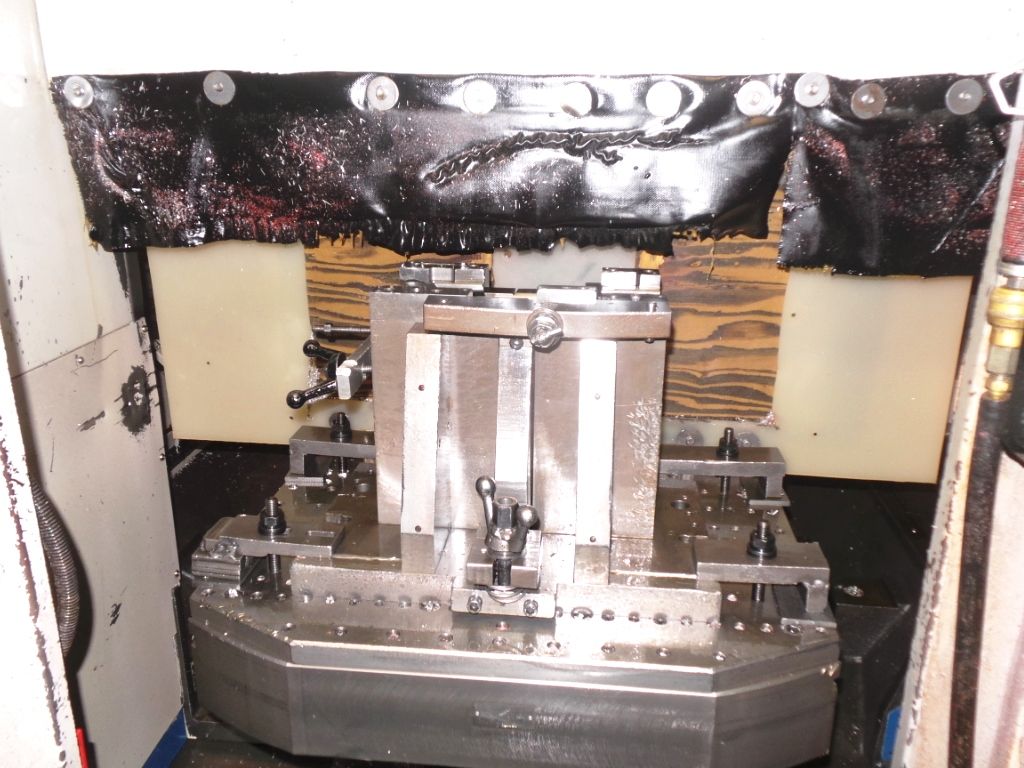

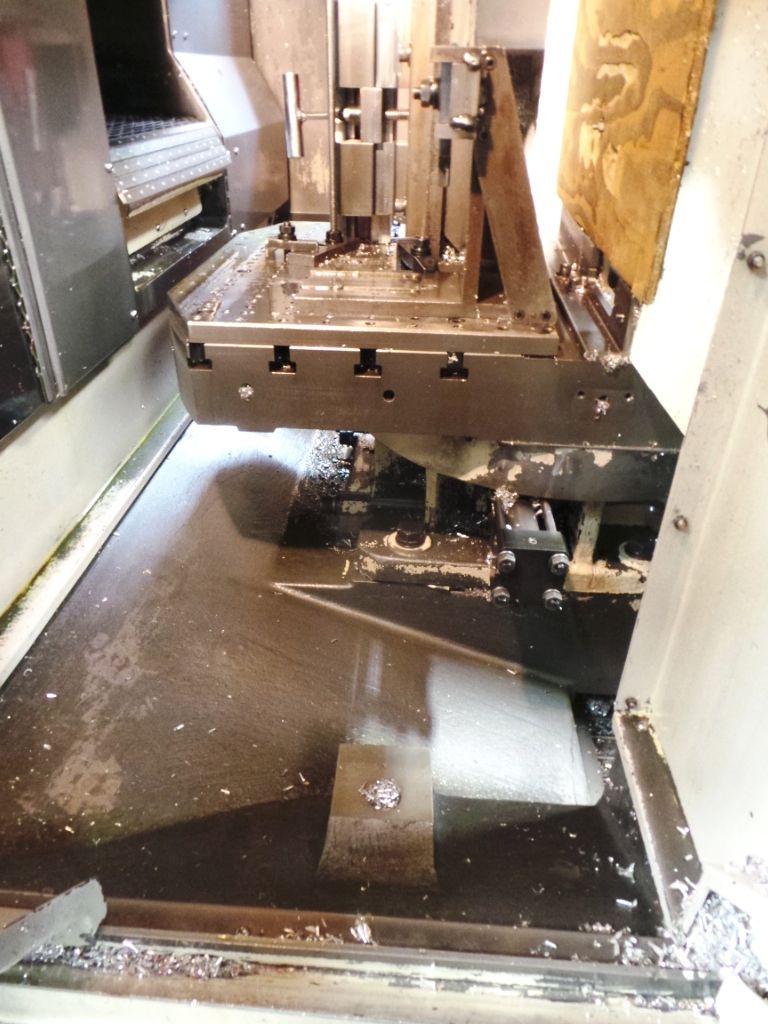

| Length of the working table |
25.6 in |
| Width of the working table |
17.7 in |
| Maximum table load (evenly distributed) |
660 lb |
| Power of the spindle drive |
10 hp |

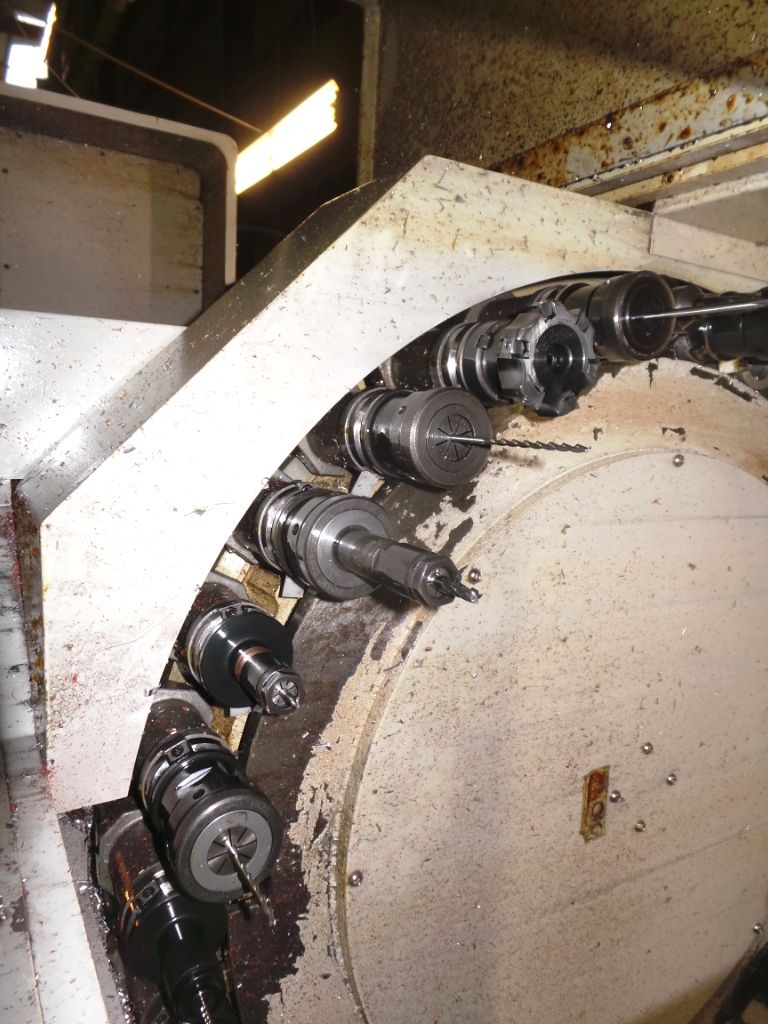

| Number of tools in the magazine |
30 pcs |

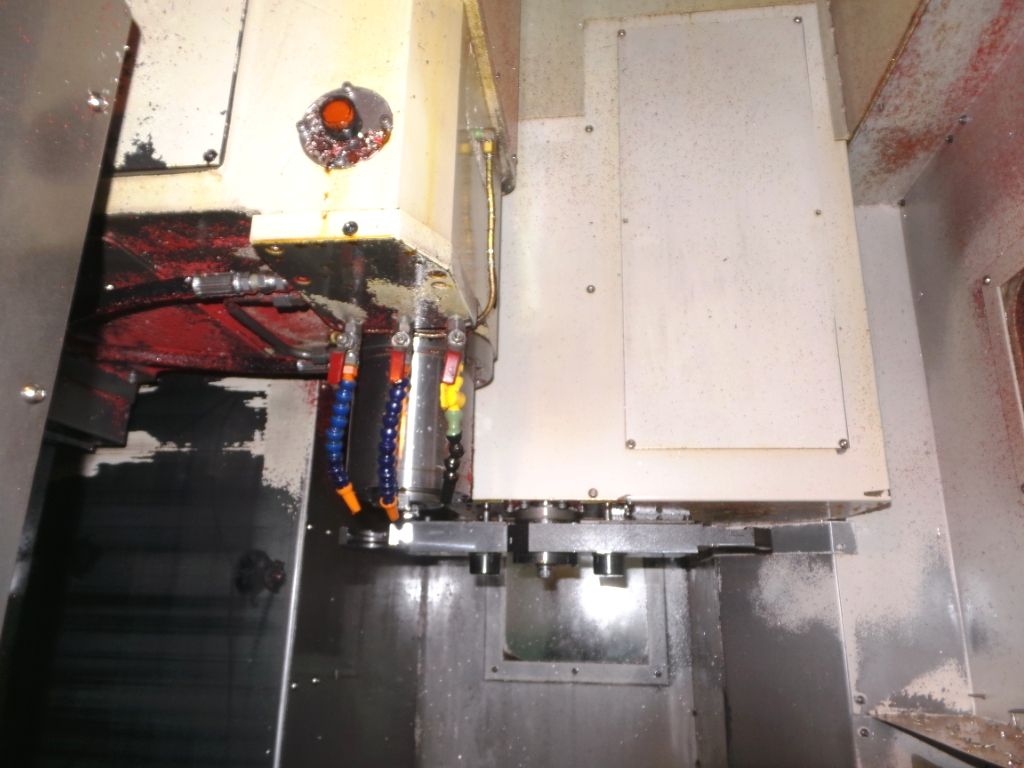

| Minimum rotary speed of the vertical spindle |
80 1/min |
| Maximum rotary speed of the vertical spindle |
10000 1/min |
| Minimum distance of the spindle from the table |
5.9 in |
| Maximum distance of the spindle from the table |
28.3 in |
| Travel length X-axis (mechanical feed) |
22 in |
| Travel length Y-axis (mechanical feed) |
15.7 in |
| Travel length Z-axis (mechanical feed) |
22.4 in |
| Maximum feed rate in X-axis |
19.7 in/s |
| Maximum feed rate in Y-axis |
19.7 in/s |
| Maximum feed rate in Z-axis |
15.8 in/s |
| Machine length |
105 in |
| Machine width |
87 in |
| Machine weight |
6.6 short ton |
