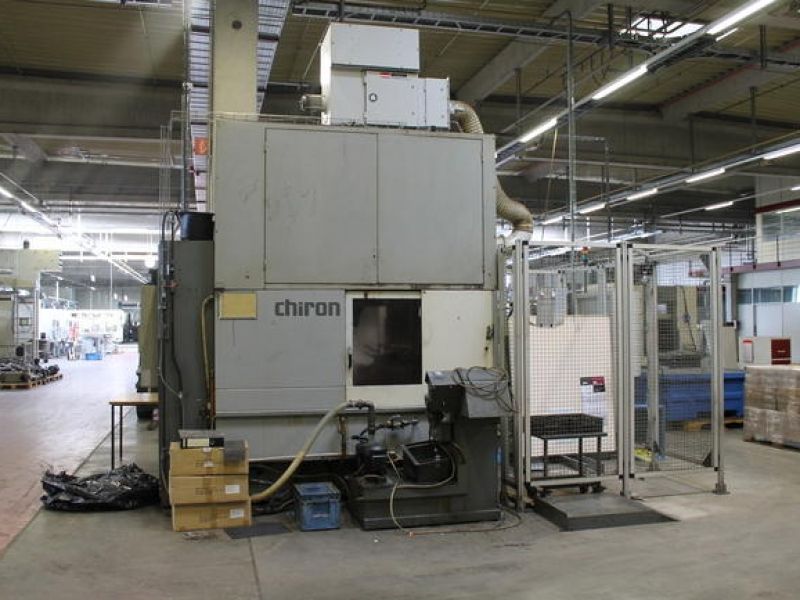

CNC Vertical Machining Center CHIRON DZ 12 W

Category CNC Milling Machines and Machining Centers CHIRON ›
Manufacturer CHIRON ›

ARCHIVED AD
CNC Vertical Machining Center CHIRON DZ 12 W was manufactured by the machine manufacturer CHIRON. Machine CHIRON DZ 12 W was built in 1993 year.

General data

Location Germany
region Bayern
Year of manufacture 1993
Warranty Without warranty
Technical condition Very good

Technical parameters

Length of the working table 37.4 in
Width of the working table 26 in
Maximum table load (evenly distributed) 220.5 lb
Power of the spindle drive 12.3 hp
Number of tools in the magazine 12 pcs
Minimum rotary speed of the vertical spindle 20 1/min
Maximum rotary speed of the vertical spindle 10500 1/min
Minimum distance of the spindle from the table 7.5 in
Maximum distance of the spindle from the table 24.2 in
Throat depth (distance of the spindle axis from the frame) 17.3 in
Travel length X-axis (mechanical feed) 11.8 in
Travel length Y-axis (mechanical feed) 11.8 in
Travel length Z-axis (mechanical feed) 16.7 in
Maximum feed rate in X-axis 26.2 in/s
Maximum feed rate in Y-axis 26.2 in/s
Maximum feed rate in Z-axis 26.2 in/s
Total power demand 29.5 hp
Machine weight 4.2 short ton

Equipment

Liquid cooling system
