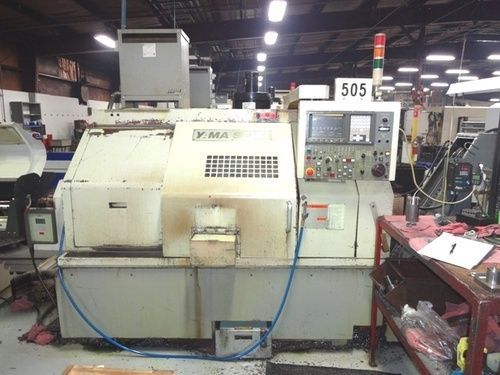

CNC Lathe YAMA SEIKI GA-330

Category CNC Lathes and Turning Centers YAMA SEIKI ›
Manufacturer YAMA SEIKI ›

ARCHIVED AD
CNC Lathe YAMA SEIKI GA-330 was manufactured by the machine manufacturer YAMA SEIKI. Machine YAMA SEIKI GA-330 was built in 2002 year.

General data

Location United States
region South Carolina
Year of manufacture 2002
Warranty Without warranty

Technical parameters

Maximum turning length (Z-axis) 24.8 in
Turning diameter over bed (max) 23.6 in
Maximum travel length in the X-axis 10.2 in
Maximum feed rate in X-axis 788 in/min
Maximum feed rate in Z-axis 0 ft/min
Maximum power of the main spindle 6 hp
Diameter of the spindle bore 4 in
Minimum rotary speed of the main spindle 30 rpm
Maximum rotary speed of the main spindle 3000 rpm
Total number of tools in the turret 12 pcs
Length of the lathe 124 in
Width of the lathe 77 in
Height of the lathe 75 in
Weight of the lathe 7.2 short ton

Equipment

FANUC 0i-T
Chip transporter
C-axis synchronous
