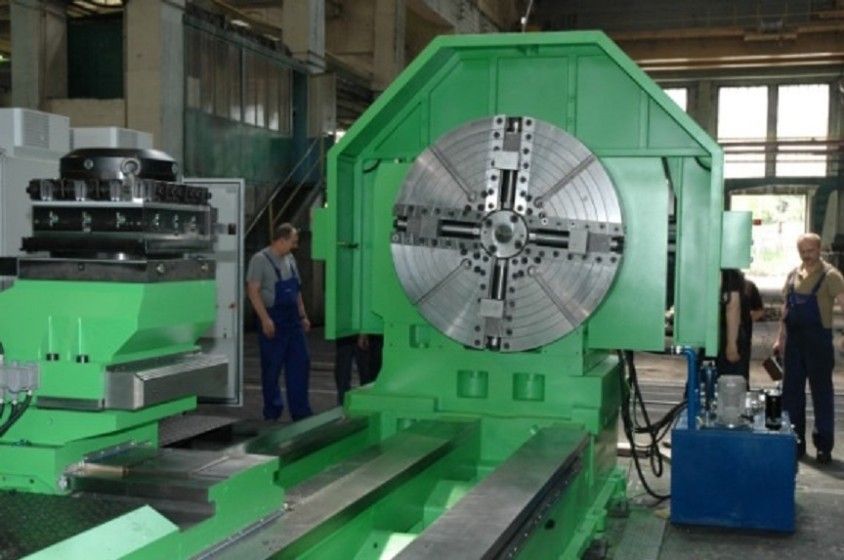

CNC Lathe Poręba TCF 224 X 12 M

Category CNC Lathes and Turning Centers Poręba ›
Manufacturer Poręba ›

ARCHIVED AD
CNC Lathe Poręba TCF 224 X 12 M was manufactured by the machine manufacturer Poręba. Machine Poręba TCF 224 X 12 M was built in 1994 year.

General data

Location United States
region Georgia
Year of manufacture 1994
Warranty Without warranty
Stock number 10222

Technical parameters

Maximum turning length (Z-axis) 472.4 in
Turning diameter over bed (max) 88 in
Turning diameter over cross slide (max) 70.9 in
Maximum power of the main spindle 95 hp
Diameter of the spindle bore 4.1 in
Minimum rotary speed of the main spindle 1 rpm
Maximum rotary speed of the main spindle 200 rpm
Workpiece weight between centers (max) 80000 lb

Equipment

SIEMENS SINUMERIK 840 D
Chip transporter
