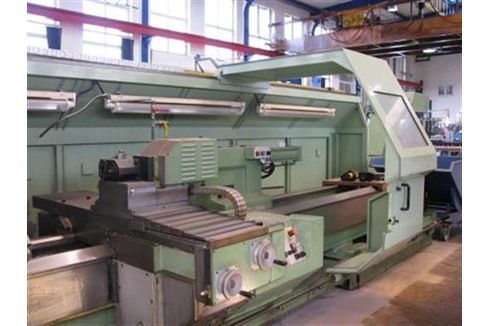

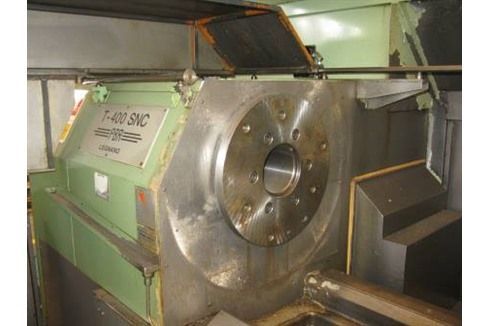

CNC Lathe PBR T 400 SNC
CNC Lathe PBR T 400 SNC was manufactured by the machine manufacturer PBR. Machine PBR T 400 SNC was built in 1997 year.
General data | |
|---|---|
| Location | Italy |
| region | Milano |
| Year of manufacture | 1997 |
| Warranty | Without warranty |
Technical parameters | |
|---|---|
| Maximum turning length (Z-axis) | 196.9 in |
| Turning diameter over bed (max) | 31.5 in |
| Turning diameter over cross slide (max) | 17.7 in |
| Maximum power of the main spindle | 40.2 hp |
| Diameter of the spindle bore | 5.1 in |
| Maximum rotary speed of the main spindle | 1500 rpm |
| Workpiece weight between centers (max) | 11023.1 lb |
| Number of CNC controlled axles | 3 pcs |
| Weight of the lathe | 11 short ton |
Equipment | |
|---|---|
| NUM PLUS 1060 T | |
| Chip transporter | |
| C-axis synchronous | |
