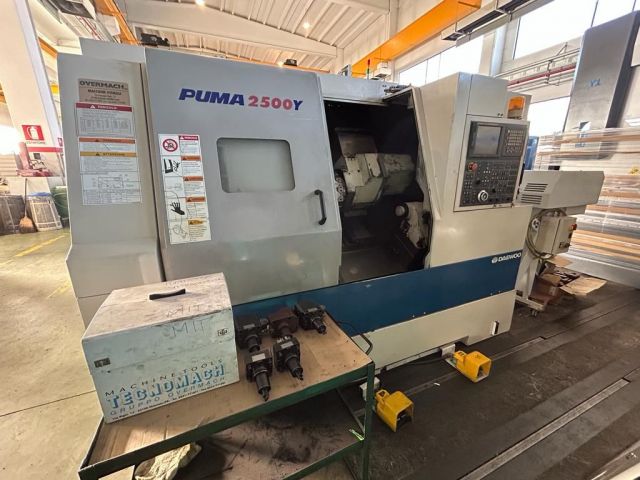

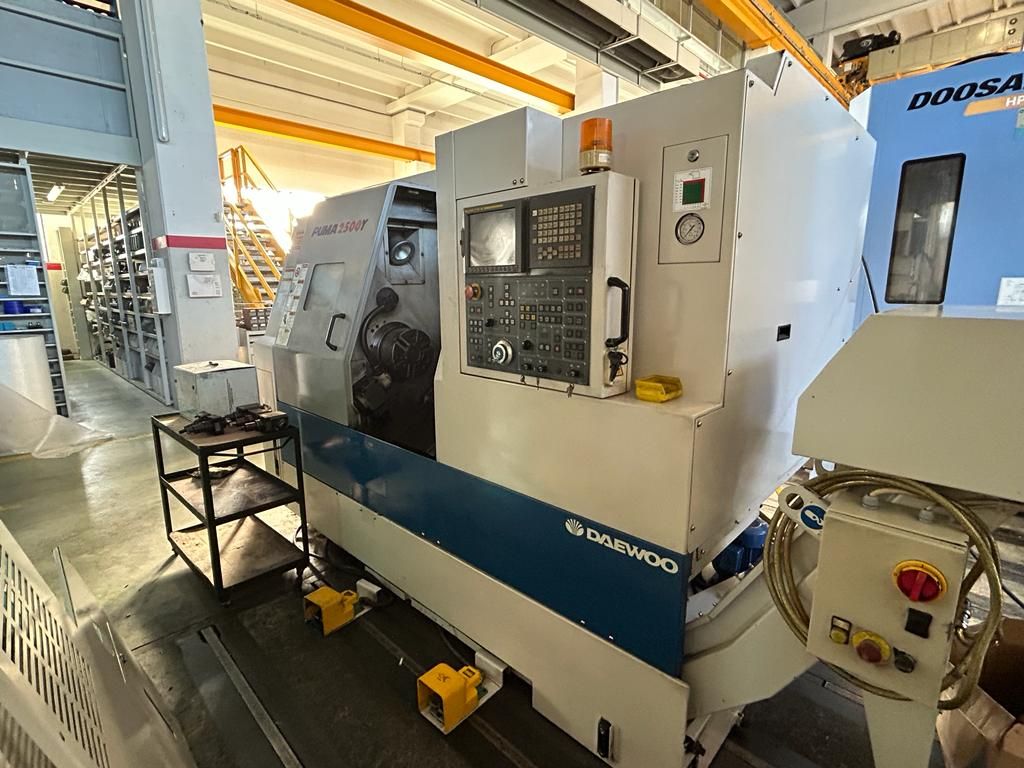

CNC Lathe DAEWOO Puma 2500Y
CNC Lathe DAEWOO Puma 2500Y was manufactured by the machine manufacturer DAEWOO. Machine DAEWOO Puma 2500Y was built in 2004 year.
General data | |
|---|---|
| Location | Italy |
| region | Rovigo |
| Year of manufacture | 2004 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The buyer organizes the loading at his own cost |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
| Stock number | T54130223 |
Technical parameters | |
|---|---|
| Maximum turning length (Z-axis) | 19.7 in |
| Turning diameter over bed (max) | 23.6 in |
| Turning diameter over cross slide (max) | 21.7 in |
| Maximum travel length in the X-axis | 9.8 in |
| Maximum feed rate in X-axis | 787.4 in/min |
| Maximum feed rate in Z-axis | 944.9 in/min |
| Number of spindles | 1 pcs |
| Maximum power of the main spindle | 29.5 hp |
| Diameter of the spindle bore | 3.5 in |
| Minimum rotary speed of the main spindle | 35 rpm |
| Maximum rotary speed of the main spindle | 3500 rpm |
| Number of tool turrets | 1 pcs |
| Total number of tools in the turret | 12 pcs |
| Number of driven tools in the turret | 12 pcs |
| Tailstock quill diameter | 7.1 in |
| Maximum travel length of the tailstock quill | 4.7 in |
| Number of CNC controlled axles | 5 pcs |
Equipment | |
|---|---|

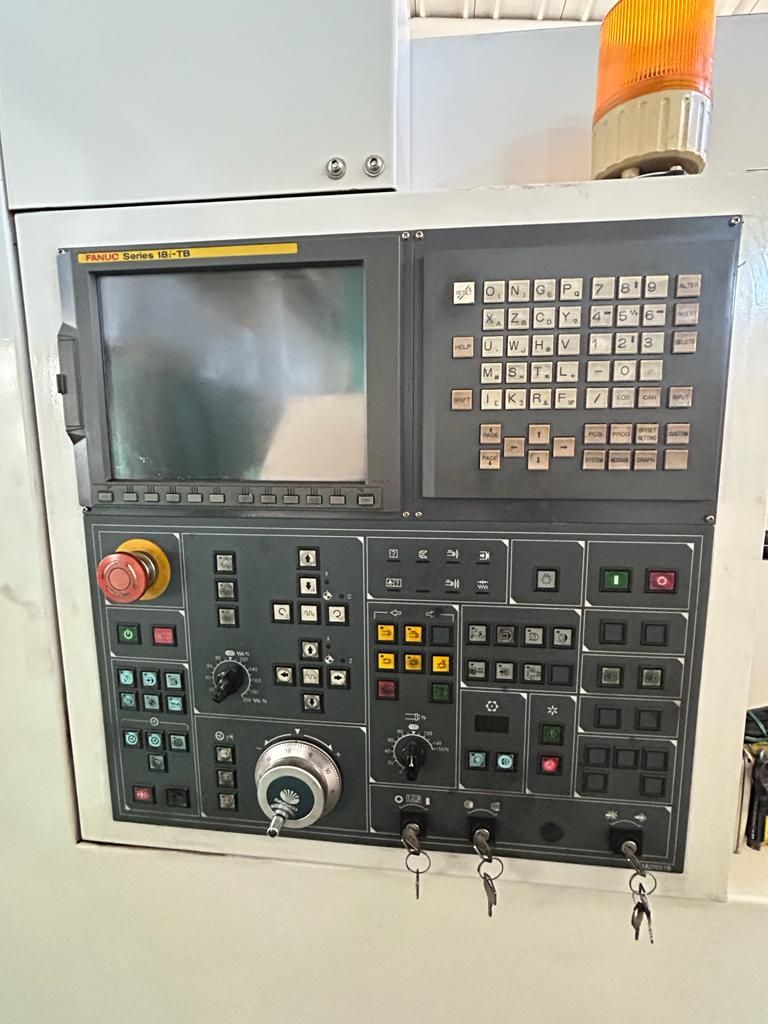

| Fanuc 18i-TB | |
| RS connection | |
| Measurement probe for the workpieces | |
| Chip transporter | |
| Y-axis | |

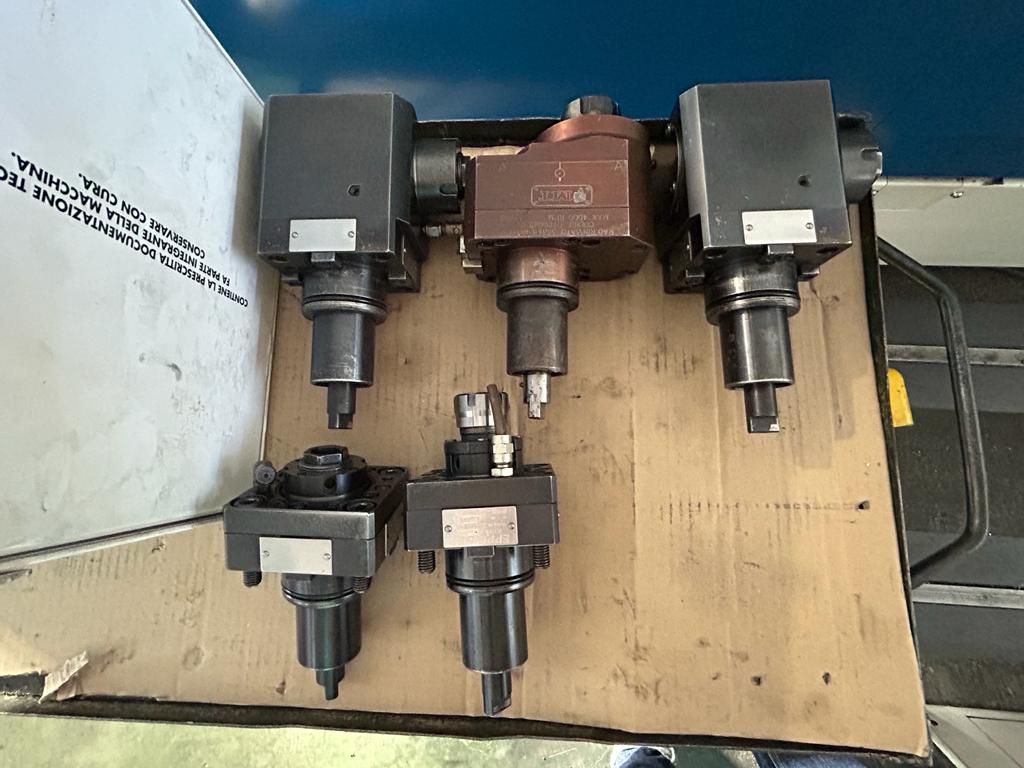

| Driven Tools | |
| Hydraulic chuck | |
| Technical documentation | |
| CE Declaration | |
