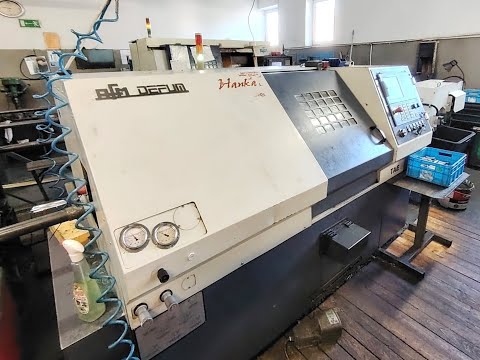

CNC Lathe AFM DEFUM TAE 35N HANKA
| Net price | 31035 USD |
| Local tax (VAT) | 23 % |
| Company name |
Maszyneria
Sławomir Konieczko |
| Address | Wita Stwosza 18/13 |
| City | Jelenia Góra |
| Post code | 58-560 |
| region | Dolnośląskie |
| Country | Poland |
| Telephone | +48 603510566 |
| Category | CNC Lathes and Turning Centers AFM DEFUM › |
| Manufacturer | AFM DEFUM › |
CNC Lathe AFM DEFUM TAE 35N HANKA was manufactured by the machine manufacturer AFM DEFUM. Machine AFM DEFUM TAE 35N HANKA was built in 2017 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2017 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
Technical parameters | |
|---|---|
| Maximum turning length (Z-axis) | 21.3 in |
| Turning diameter over bed (max) | 20.9 in |
| Turning diameter over cross slide (max) | 11.8 in |
| Maximum travel length in the X-axis | 8.3 in |
| Maximum feed rate in X-axis | 787.4 in/min |
| Maximum feed rate in Z-axis | 787.4 in/min |
| Number of spindles | 1 pcs |
| Maximum power of the main spindle | 21.4 hp |
| Diameter of the spindle bore | 3 in |
| Minimum rotary speed of the main spindle | 5 rpm |
| Maximum rotary speed of the main spindle | 4000 rpm |
| Number of tool turrets | 1 pcs |
| Total number of tools in the turret | 12 pcs |
| Length of the lathe | 113.8 in |
| Width of the lathe | 60.6 in |
| Height of the lathe | 69.5 in |
| Weight of the lathe | 3.9 short ton |
Equipment | |
|---|---|
| SIEMENS SINUMERIK 828D | |
| Chip transporter | |
| Turret head | |
